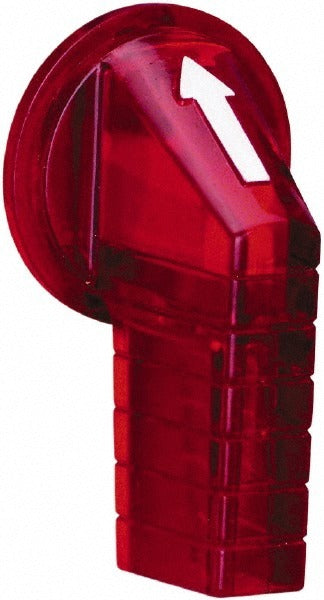

Schneider Electric 9001R24 Selector Switch Knob 30mm Red

Product Description

The Schneider Electric 9001R24 is a 30mm red operating knob designed as a replacement accessory for selector switches. It provides the operator interface for actuating selector switch positions in industrial and commercial control panel applications. The knob fits a 30mm mounting hole and is color-coded red for clear panel identification. Electricians and control panel technicians install this accessory during new panel builds or as a field replacement when an existing knob is damaged or worn. Its compact footprint keeps the package dimensions at 3 inches long, 2.4 inches wide, and 2 inches tall, making it easy to store and handle on the job.

This operating knob is intended for use with Schneider Electric selector switches requiring a 30mm mounting hole diameter. It suits industrial control panels, machine operator stations, and commercial electrical enclosures where selector switch assemblies are used for mode selection, circuit control, or equipment sequencing. The red color designation helps operators and technicians quickly distinguish this actuator from others on a multi-switch panel face.

Key Features

• 30mm mounting hole diameter for direct fitment with compatible selector switches
• Red color coding for clear operator identification on control panels
• Compact package: 3 inches x 2.4 inches x 2 inches
• Lightweight at 0.03 pounds, minimizing added load on the switch assembly
• Sold individually, one knob per package

Compatibility

Designed for use with 30mm selector switches. Consult Schneider Electric documentation to confirm fitment with a specific selector switch model before installation.

Installation Notes

Installation is performed by a licensed electrician or qualified control panel technician. De-energize the panel and verify the absence of voltage using an appropriate meter before handling any switch components. Ensure the selector switch body is properly mounted in the enclosure before attaching the operating knob. Follow applicable NEC requirements for control panel wiring and enclosure integrity.
