Schneider Electric 9001KXRG117 Push-button Switch 30mm

Product Description

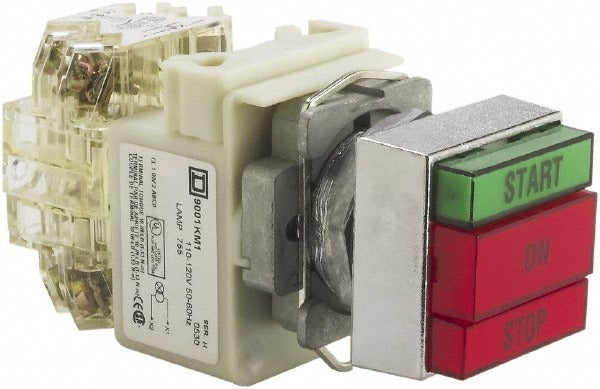

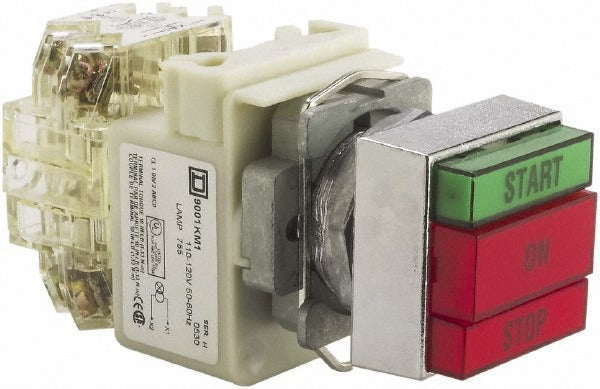

The SCHNEIDER ELECTRIC 9001KXRG117 is a 30 mm mounting hole, momentary push-button switch designed for industrial and commercial control panel applications. It operates on 110 to 120 volts and features a 2NO/2NC contact configuration, making it suitable for start-on-stop switching sequences. The switch is illuminated and ships with both green and red rectangular push buttons, allowing it to serve dual-function operator interfaces in a single assembly. At 0.73 pounds, it is a compact unit measuring 3.7 inches long, 2.2 inches tall, and 1.9 inches wide. Licensed electricians and panel builders are the primary installers of this component.

This switch is suited for use in industrial control panels, motor control centers, and machine operator stations requiring momentary contact operation. Its Start-On-Stop switching sequence supports common run/stop machine control logic. The illuminated operator provides visual status feedback to operators in both light and low-light environments. The NEMA 13, 4, and 4X ratings make it appropriate for installations in wash-down, dust-tight, and corrosion-resistant enclosure environments, including those in food processing, manufacturing, and similar industrial settings.

Key Features

• 30 mm mounting hole diameter for standard industrial panel cutouts
• Momentary operation with 2NO/2NC contact configuration
• Start-On-Stop switch sequence for run/stop machine control
• Illuminated operators in green and red rectangular push button format
• NEMA 4, 4X, and 13 ratings for wet, dusty, and corrosive environments
• UL Listed, CSA Certified, CE Marked, and RoHS Compliant

Compatibility

Designed as an OEM-style replacement push-button switch for 30 mm industrial control panel operator stations requiring momentary 2NO/2NC contact blocks and illuminated rectangular operators.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the control panel before installing or replacing any switch component. Verify that the supply voltage matches the 110 to 120 volt rating of this switch before energizing. Confirm proper seating of the contact block and operator assembly before returning the panel to service.
