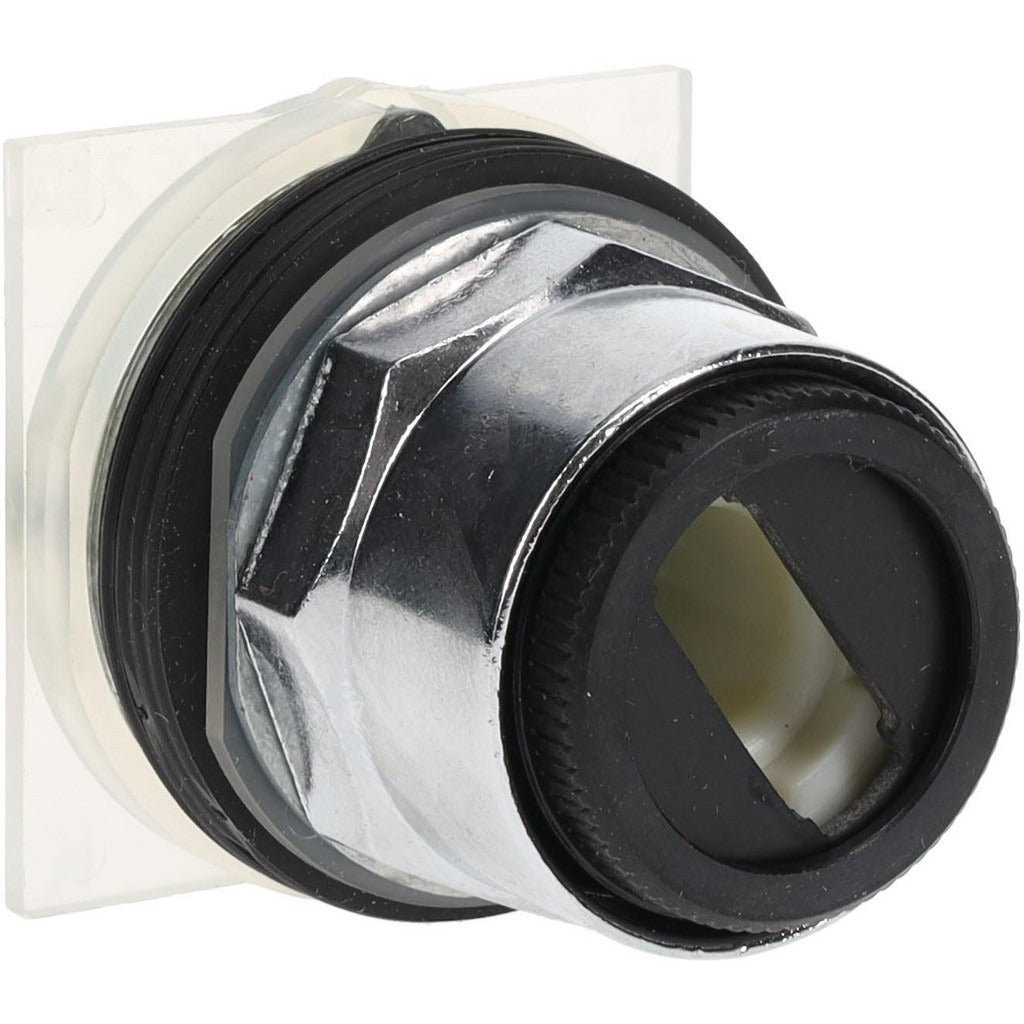

Schneider Electric 9001KS73 Selector Switch 3 Position 600V

Product Description

The SCHNEIDER ELECTRIC 9001KS73 is a 3-position momentary selector switch designed for industrial panel mount applications. It features a push-button operator style with a chrome metal bezel and is rated for 600 volts. The switch ships without contact blocks, making it suitable for use as a standalone operator head paired with separately sourced contact block assemblies. Electricians and control panel builders install this type of switch in motor control centers, machine panels, and industrial enclosures where a spring-return, center-off or end-position momentary action is required.

The 9001KS73 is suited for demanding environments where dust, oil, and moisture exposure are concerns. Its NEMA ratings of 1, 2, 3, 3R, 4, 6, 12, and 13 cover a broad range of indoor and outdoor industrial installations. The 1.18-inch panel cutout diameter fits standard 30mm operator mounting holes, which are common in industrial control panels across manufacturing, process control, and utility applications. This is a panel-mount component intended for licensed electricians performing control panel assembly or field replacement work.

Key Features

• 3-position momentary operation with push-button operator style
• 600-volt rating suitable for industrial control circuits
• Chrome metal bezel for durability in heavy-use environments
• Standard 30mm (1.18-inch) panel cutout for broad panel compatibility
• NEMA 1, 2, 3, 3R, 4, 6, 12, and 13 rated for dust, oil, and weatherproof installations
• UL Listed (File E42259, CCN NKCR) and CSA certified (LR24590 Class 3211 03)

Compatibility

Designed as an OEM-style panel operator for standard 30mm industrial control panel cutouts. Ships with zero contact blocks; compatible contact blocks must be sourced and installed separately per the control circuit design.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize and lock out the panel before mounting or wiring any control components. The 30mm mounting hole must be properly sized and deburred before inserting the operator. Contact blocks are not included and must be attached to the operator body prior to panel installation.
