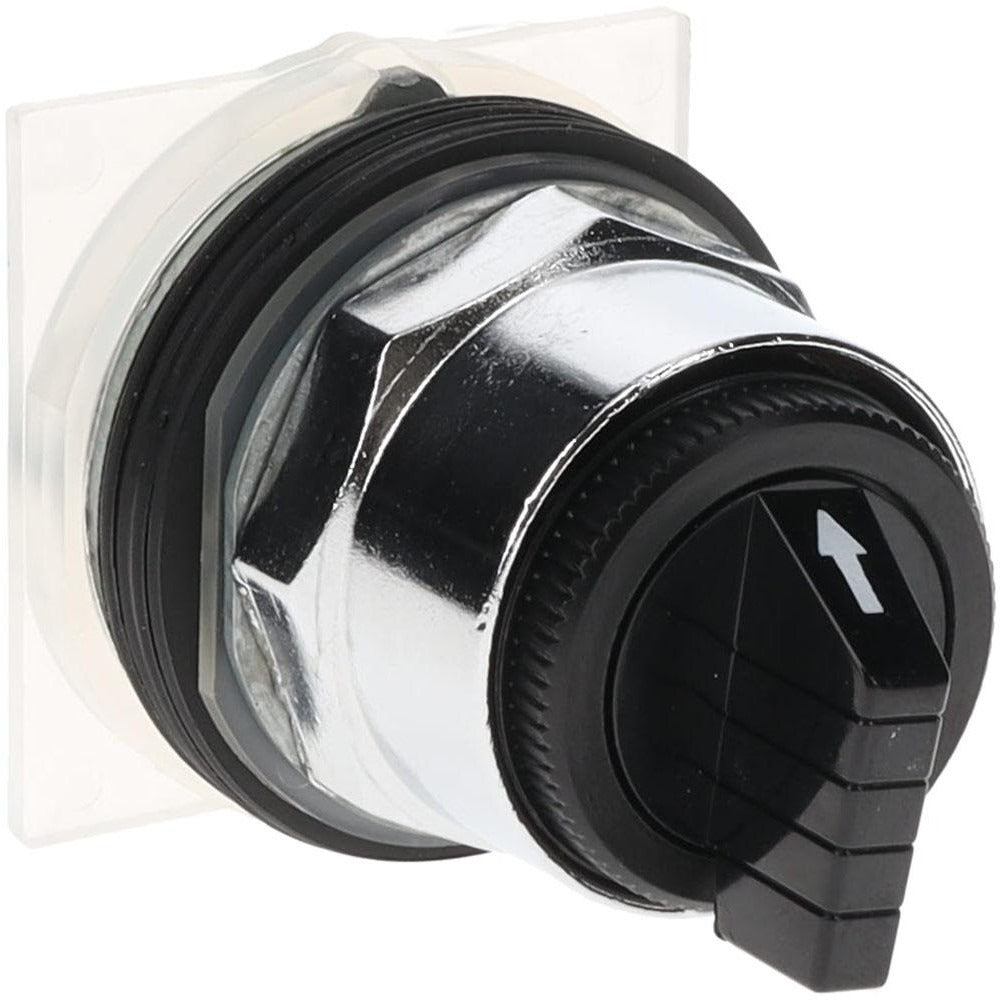

Schneider Electric 9001KS72B Selector Switch 3 Position

Product Description

The Schneider Electric 9001KS72B is a 3-position momentary selector switch operator designed for industrial control panel applications. It features a black knob push button operator with a chrome metal bezel, rated at 600 volts. The momentary operation returns the knob to center when released, making it suitable for jog, inch, or timed-function circuits. Panel-mount installation uses a standard 30 mm hole diameter. The bezel and housing carry dust-resistant, oil-resistant, and weatherproof ratings, supporting reliable performance in demanding environments. This unit ships as the switch operator only and does not include contact blocks.

This selector switch is used in industrial and commercial control panels where a 3-position momentary operator is required. Typical applications include machine tool controls, conveyor systems, pump control stations, and HVAC equipment control panels. The 30 mm panel-mount footprint fits standard 30 mm cutout enclosures. NEMA ratings of 1, 2, 3, 3R, 4, 6, 12, and 13 make this operator suitable for indoor dry locations, outdoor weatherproof installations, and oil-tight or watertight enclosures. Electricians and industrial control technicians install this component as part of new panel builds or as a direct operator replacement.

Key Features

• 3-position momentary operation returns to center on release
• Black knob push button operator with chrome metal bezel
• 600-volt rating for industrial control circuit use
• 30 mm panel-mount hole diameter for standard cutout compatibility
• NEMA 1, 2, 3, 3R, 4, 6, 12, and 13 rated for dust, oil, and weatherproof environments
• Operator only — contact blocks ordered separately, zero contact blocks included

Compatibility

Designed for use with compatible 30 mm contact block assemblies in standard industrial control panel configurations. No specific compatible model numbers were provided in the product data. Consult Schneider Electric 9001K series documentation to confirm contact block and legend plate compatibility.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements and local codes. De-energize and lock out the control panel before beginning any work. The operator mounts through a 30 mm panel cutout and secures with the included hardware. Contact blocks are not included and must be sourced and attached separately before completing the circuit.
