Schneider Electric 9001KS63B Selector Switch 3 Position 600V

Product Description

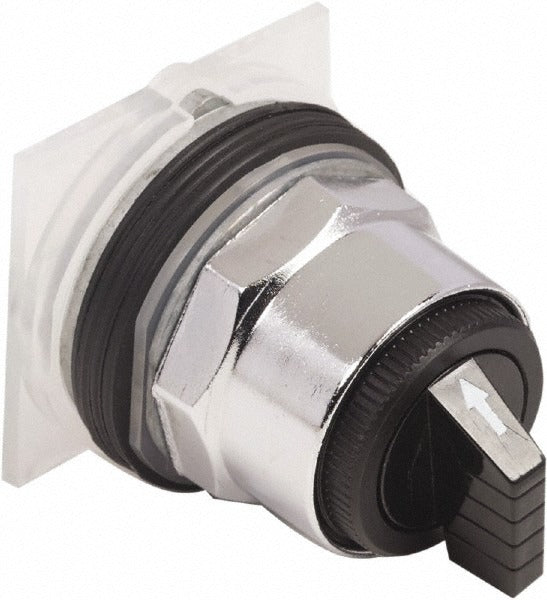

The SCHNEIDER ELECTRIC 9001KS63B is a 3-position momentary selector switch operator designed for industrial and commercial panel mount applications. It features a black knob-style operator with a chrome metal bezel and a 30 mm mounting hole diameter. Rated at 600 volts, this switch operator mounts directly through a panel cutout and is intended for use by licensed electricians and industrial controls technicians. The momentary operation returns the selector to center when released, making it well suited for jog, spring-return, or impulse-style control circuits.

This selector switch operator is used in motor control panels, machine control enclosures, and industrial automation systems where a 30 mm panel cutout is standard. Its dust-resistant, oil-resistant, and weatherproof construction qualifies it for demanding plant floor and outdoor environments. The unit ships as the operator only and does not include contact blocks, making it appropriate for replacement or upgrade of existing assemblies where only the operator needs to be swapped out.

Key Features

• 3-position momentary operation returns to center on release
• 600-volt rating suitable for industrial control circuit applications
• 30 mm panel mount hole diameter fits standard industrial cutouts
• Chrome metal bezel with black knob operator
• Dust-resistant, oil-resistant, and weatherproof construction
• NEMA ratings 1, 2, 3, 3R, 4, 6, 12, and 13 for broad enclosure compatibility
• CE, CSA, and UL Listed certifications

Compatibility

Designed as an OEM-style operator for 30 mm industrial control panel assemblies. This unit is the operator only and requires separately sourced contact blocks for a complete switching assembly.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize and lock out the panel before removing or installing any operator or contact block assembly. The operator mounts through a standard 30 mm panel cutout and is secured with the included hardware to the enclosure face. Do not apply voltage to the circuit until all contact blocks are properly seated and the enclosure is closed.
