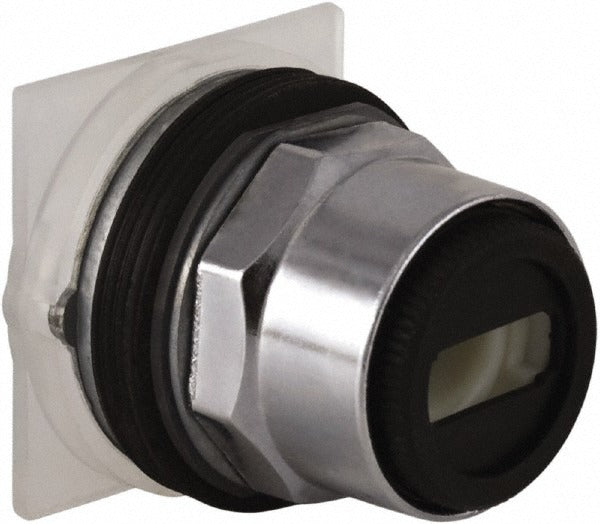

Schneider Electric 9001KS63 Selector Switch 600V 3-position

Product Description

The SCHNEIDER ELECTRIC 9001KS63 is a 3-position momentary selector switch designed for panel-mount control applications. It operates at up to 600 volts and features a chrome metal bezel with a 30mm (1.18 inches) panel cutout diameter. The switch body is rated for dust, oil, and weather resistance, making it suitable for demanding industrial environments. Licensed electricians and control panel technicians install this switch as an operator interface component in machine control, motor control, and process automation panels. The momentary action returns the switch to center when released, making it appropriate for jog, inch, or pulse-type control circuits.

This selector switch is intended for use in industrial and commercial control panels where a 3-position momentary operator is required. Its panel-mount design suits both new builds and replacement installations in motor control centers, machine tool enclosures, and process control cabinets. The NEMA ratings of 1, 2, 3, 3R, 4, 6, 12, and 13 cover a wide range of indoor and outdoor enclosure types, from general-purpose indoor locations through watertight and submersion-rated environments. No contact blocks are included with this operator; contact block assemblies must be sourced separately.

Key Features

• 3-position momentary (MO) operation returns to center on release
• 600-volt rating suitable for industrial control circuit applications
• 30mm (1.18-inch) panel hole diameter for standard 30mm cutout panels
• Chrome metal bezel with dust-resistant, oil-resistant, and weatherproof construction
• NEMA ratings 1, 2, 3, 3R, 4, 6, 12, and 13 for broad enclosure compatibility
• CE, CSA, and UL Listed certifications (UL File E42259 CCN NKCR; CSA LR24590 Class 3211 03)

Compatibility

Designed as an OEM-style panel-mount selector switch operator for 30mm industrial control panel systems. No contact blocks are included; compatible contact block assemblies must be ordered separately to complete the switch assembly.

Installation Notes

Installation is performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the control panel before removing or installing any operator or contact block assembly. The 30mm panel cutout must be clean and within the manufacturer-specified tolerance before mounting. Do not exceed the 600-volt rating of the switch in any circuit application.
