Schneider Electric 9001KS59B 3-position Selector Switch 600V

Product Description

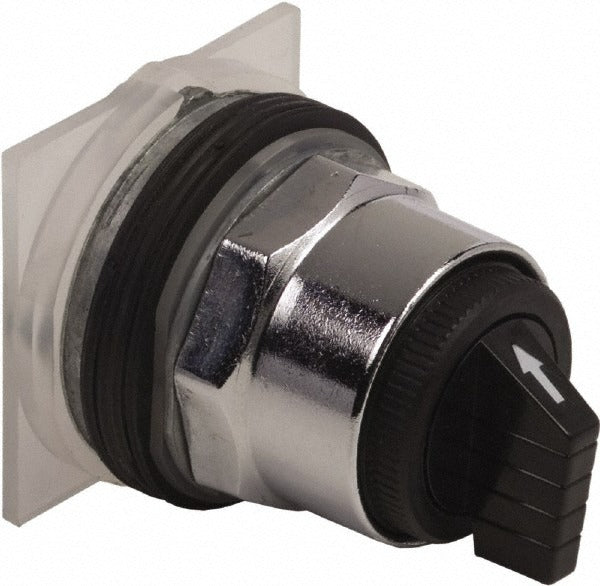

The SCHNEIDER ELECTRIC 9001KS59B is a 3-position momentary selector switch operator designed for industrial panel and enclosure applications. It features a black knob-style operator with a chrome metal bezel and mounts through a standard 30 mm (1.18 inch) panel cutout. Rated for 600 volts, it uses momentary (MO) operation, meaning the switch returns to center when released. Licensed electricians and industrial control technicians install this type of operator as part of multi-position control circuits for machinery, motor starters, and process equipment. The unit weighs 0.27 pounds and meets CE, CSA, and UL listing requirements.

This selector switch operator is suited for use in residential, commercial, and industrial control panel environments where NEMA-rated enclosure protection is required. Its dust-resistant, oil-resistant, and weatherproof construction makes it appropriate for demanding service conditions. The 9001KS59B is a switch operator body only and does not include contact blocks, making it compatible with separately sourced contact block assemblies for custom circuit configurations. It is panel-mounted and fits standard 30 mm cutout enclosures.

Key Features

• 3-position momentary operation returns to center on release
• 600V rating suitable for industrial control circuits
• Black knob operator with chrome metal bezel
• Fits standard 30 mm (1.18 inch) panel cutout
• Dust-resistant, oil-resistant, and weatherproof construction
• CE, CSA LR24590 Class 3211 03, and UL Listed (File E42259 CCN NKCR) certifications

Compatibility

Rated for NEMA enclosure types 1, 2, 3, 3R, 4, 6, 12, and 13. Operator only — contact blocks are not included and must be sourced separately to complete the switch assembly.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the NEC and applicable local codes. De-energize and lock out all power to the control panel before beginning any installation or wiring work. The operator mounts through a 30 mm panel cutout and secures with the provided hardware. Do not exceed the rated voltage of 600 volts for the circuit in which this switch is installed.
