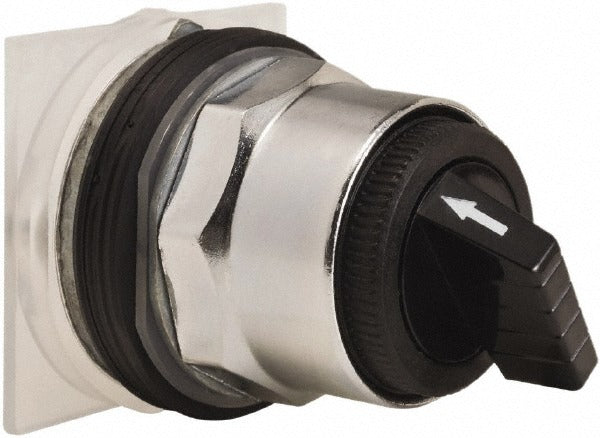

Schneider Electric 9001KS34B Selector Switch 2 Position

Product Description

The SCHNEIDER ELECTRIC 9001KS34B is a 2-position momentary selector switch operator designed for panel-mount industrial control applications. It features a black knob push button operator with a chrome metal bezel and a 30 mm mounting hole diameter, rated at 600 volts. The momentary operation means the switch returns to its neutral position when released, making it suited for jog, inch, or start-stop control functions. This operator ships without contact blocks, so the appropriate contact block assemblies must be specified and installed separately. Licensed electricians and industrial control panel builders are the primary installers of this component.

This selector switch operator is built for demanding environments. Its dust-resistant, oil-resistant, and weatherproof construction supports use in industrial facilities, machine control panels, and outdoor or wet-location enclosures. The NEMA ratings cover a broad range of enclosure types, including NEMA 1, 2, 3, 3R, 4, 6, 12, and 13, allowing installation in general-purpose, drip-proof, raintight, watertight, and oil-tight applications. It is an appropriate choice for manufacturing, process control, and utility panel builds where a reliable momentary operator with a sealed construction is required.

Key Features

• Momentary operation — returns to center when released, ideal for jog and inch control circuits
• 600-volt rating supports standard industrial control panel voltages
• 30 mm panel cutout fits standard 30 mm operator mounting holes
• Chrome metal bezel with black knob operator for clear visual identification
• Dust-resistant, oil-resistant, and weatherproof construction
• NEMA 1, 2, 3, 3R, 4, 6, 12, and 13 rated enclosure compatibility
• CE, CSA, and UL Listed certifications (UL File E42259 CCN NKCR; CSA LR25490 Class 3211 03)

Compatibility

Designed as an operator-only component for 30 mm panel-mount selector switch assemblies. No contact blocks are included; compatible contact blocks must be sourced and installed separately to complete the switch assembly.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize and lock out the control panel before mounting or wiring any switch operator or contact block. Verify the panel enclosure NEMA rating matches the environmental requirements of the installation before mounting. Because this part is an operator only, confirm the correct contact block configuration is installed before returning the circuit to service.
