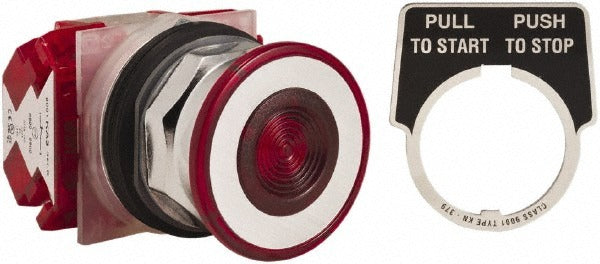

Schneider Electric 9001KR9RH8 Push-button Switch 30mm 600V

Product Description

The SCHNEIDER ELECTRIC 9001KR9RH8 is a maintained-action push-button switch rated for 600 volts AC at 10 amps, designed for industrial and commercial control panel applications. It features a 2NC (normally closed) contact configuration and a red extended straight push button, making it suitable for stop, emergency-hold, or interlock functions. The 30 mm mounting hole diameter fits standard 30 mm panel cutouts. Licensed electricians and controls technicians install this switch in machine control enclosures, motor control centers, and process control panels where a latching maintained-action input is required.

This switch is appropriate for use in residential, commercial, and industrial control panels requiring a 30 mm push-button station. The maintained operation type holds its switched state until actuated again, which suits applications such as motor start-stop circuits, lighting control, and equipment interlock stations. The red extended button provides clear visual identification for stop or de-energize functions. NEMA ratings of 1, 2, 3, 3R, 4, 6, 12, and 13 cover a broad range of environmental enclosure requirements.

Key Features

• Maintained (MA) operation holds contact state between actuations
• 2NC contact configuration suitable for stop and interlock circuits
• Red extended straight push button for clear operator identification
• 600 VAC rating at 10 amps for industrial control voltage levels
• 30 mm mounting hole diameter fits standard 30 mm panel cutout stations
• NEMA ratings 1, 2, 3, 3R, 4, 6, 12, and 13 for versatile enclosure compatibility

Compatibility

Designed as an OEM-style replacement push-button switch for standard 30 mm panel-mount control stations in industrial and commercial electrical enclosures.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize and lock out the control panel before removing the existing switch or making wiring connections. Verify the panel cutout is 30 mm and that the enclosure NEMA rating matches the environmental exposure of the installation site. Confirm contact polarity and circuit function before restoring power.
