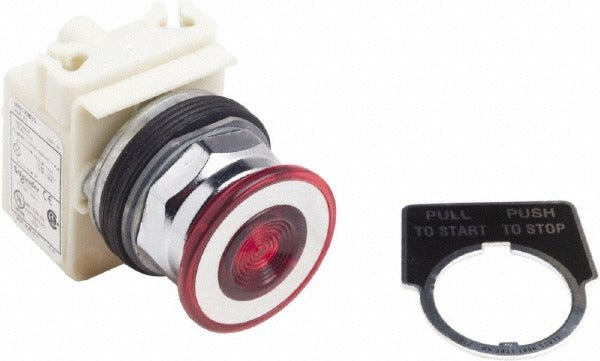

Schneider Electric 9001KR9P35R Push-button Switch 30mm

Product Description

The SCHNEIDER ELECTRIC 9001KR9P35R is a maintained-action push-button switch designed for industrial control panel and machine operator interface applications. This extended straight-style red pushbutton uses a 30 mm mounting hole diameter and holds its switched position after each press rather than returning to its default state. Licensed electricians and industrial maintenance technicians install this switch to provide reliable, latching operator control in equipment that demands a persistent on or off signal without continuous manual pressure.

This switch is suited for use in industrial control enclosures, machine tool panels, and process control stations. Its NEMA 1, 2, 3, 3R, 4, 6, 12, and 13 ratings make it appropriate for a wide range of indoor and selected outdoor or wash-down environments. The extended red button profile provides clear visual differentiation and positive tactile engagement, which is especially useful in applications where operators must quickly identify stop or actuated-state controls.

Key Features

• Maintained (MA) operation holds switch state after each actuation without requiring continuous pressure
• 30 mm mounting hole diameter fits standard 30 mm control panel cutouts
• Extended straight pushbutton profile for positive operator engagement and visibility
• Red button color for easy identification of actuated or stop-state controls
• NEMA ratings 1, 2, 3, 3R, 4, 6, 12, and 13 for broad environmental suitability

Compatibility

Designed as an OEM-style replacement for 30 mm maintained push-button switch assemblies in industrial control panels and operator interface stations.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements and any applicable local codes. De-energize the control panel and verify absence of voltage before removing or installing the switch. The 30 mm panel cutout should be clean and free of burrs before mounting. Verify that the contact block configuration matches the circuit requirements before returning the panel to service.
