Schneider Electric 9001KR8R Push-button Switch 600V

Product Description

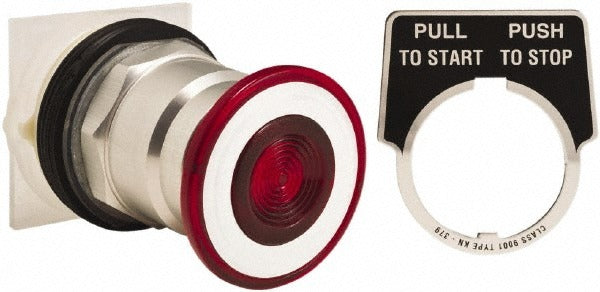

The SCHNEIDER ELECTRIC 9001KR8R is a heavy-duty push-button switch rated for 600 volts and designed for industrial and commercial control panel applications. It features a 30 mm mounting hole diameter and a red, round, extended straight push-button head. The switch supports both maintained and momentary operation modes, giving installers flexibility depending on the control circuit requirement. Built to NEMA 4, 4X, 12, and 13 standards, it is dusttight, oiltight, and watertight — making it suitable for demanding environments where contaminants, coolants, or washdowns are a concern. Licensed electricians and control panel technicians are the primary installers.

This push-button switch is used in industrial control stations, machine tool panels, motor control centers, and process equipment enclosures. Its 30 mm form factor is a widely adopted standard in control panel construction. The watertight and oiltight rating makes it appropriate for manufacturing floors, food processing environments, and outdoor control applications where NEMA 3, 3R, or 6 ratings are required. The dual-mode operation — maintained and momentary — supports a range of start, stop, and selector control functions without requiring separate switch types.

Key Features

• 600-volt rating supports standard industrial control circuit voltages
• 30 mm mounting hole diameter fits standard industrial operator enclosures
• Dual operation: maintained and momentary modes in one unit
• Red, round, extended straight push-button head for clear visual identification
• Dusttight, oiltight, and watertight construction — NEMA 1, 2, 3, 3R, 4, 6, 12, and 13 rated
• CE, CSA, and UL Listed certifications for broad compliance

Compatibility

Designed as an OEM-style replacement or direct-fit operator for 30 mm industrial control station enclosures and panel-mount applications requiring a maintained or momentary push-button switch rated at 600 volts.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the control circuit before removing or installing any push-button operator. Verify that the enclosure NEMA rating matches the environmental requirements of the installation site before mounting. Do not exceed the rated voltage of 600 volts on the switch contacts.
