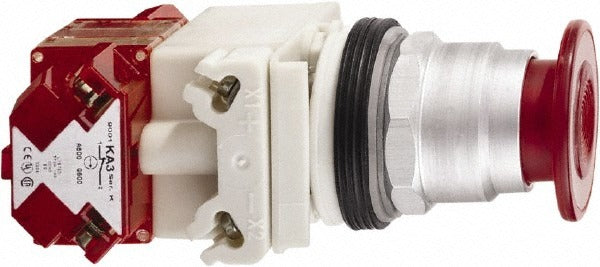

Schneider Electric 9001KR8P1RH25 Push-button Switch 600VAC

Product Description

The Schneider Electric 9001KR8P1RH25 is a heavy-duty push-button switch designed for industrial control panel applications. Rated at 600VAC and 10 amps, it supports both maintained (MA) and momentary (MO) operation modes, giving installers flexibility across a wide range of control circuit configurations. The switch features a red extended (straight) push button and a NC/NO contact configuration. It fits a standard 30 mm panel mounting hole. Licensed electricians and industrial control technicians are the primary installers for this type of switch in motor control centers, operator stations, and machine control panels.

This switch is suited for use in residential, commercial, and industrial control panel enclosures where a NEMA-rated push-button operator is required. Its NEMA 1, 2, 3, 3R, 4, 6, 12, and 13 ratings cover a broad range of indoor and outdoor environments, including applications with exposure to dust, oil, and water. Typical installations include motor starters, conveyor controls, pump station panels, and general-purpose operator interface stations.

Key Features

• 600VAC rating supports high-voltage industrial control circuits up to 10 amps
• Dual operation modes: maintained (MA) and momentary (MO) in a single unit
• NC/NO contact configuration provides wiring flexibility for normally open or normally closed circuits
• Red extended (straight) push button for clear visual identification at the operator station
• NEMA 1, 2, 3, 3R, 4, 6, 12, and 13 ratings for broad environmental protection coverage
• Standard 30 mm mounting hole diameter compatible with common panel cutout tooling

Compatibility

Designed as an OEM-style replacement or direct installation push-button switch for 30 mm standard-format industrial control panels and operator stations requiring a 600VAC-rated push-button operator.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the panel and verify zero voltage with a calibrated meter before beginning any wiring work. Ensure the panel cutout is clean and sized to the 30 mm mounting diameter before seating the operator. Confirm the NEMA enclosure rating of the host panel is compatible with the intended service environment before completing installation.
