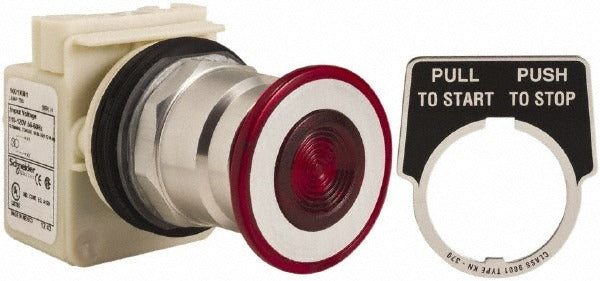

Schneider Electric 9001KR8P1R Push-button Switch 600V

Product Description

The SCHNEIDER ELECTRIC 9001KR8P1R is a heavy-duty push-button switch designed for industrial control panel applications. It features a 30 mm mounting hole diameter and supports both maintained and momentary operation modes, giving installers flexibility across a range of control circuit configurations. Rated at 600 volts, this switch is built to handle demanding electrical environments. The extended, straight red round button provides clear visual identification at the panel. Its dusttight, oiltight, and watertight construction meets NEMA ratings 1, 2, 3, 3R, 4, 6, 12, and 13, making it suitable for harsh or wet locations encountered in commercial and industrial settings.

This push-button switch is used in industrial and commercial control panel installations where a standard 30 mm push-button operator is required. It is appropriate for motor control centers, machine control stations, and process control enclosures. The dual operation capability — maintained and momentary — makes it adaptable for start, stop, and selector functions. Electricians and controls technicians typically install this switch in enclosures exposed to dust, oil mist, or washdown conditions where NEMA 4 or higher ratings are required.

Key Features

• 30 mm mounting hole diameter fits standard IEC and NEMA 30 mm cutout panels
• Supports both maintained and momentary operation modes
• 600-volt rating for use in industrial control circuits
• Extended straight red round button for clear panel identification
• Dusttight, oiltight, and watertight construction rated NEMA 1, 2, 3, 3R, 4, 6, 12, and 13
• CE, CSA, and UL listed for broad compliance across North American and international installations

Compatibility

Designed as an OEM-style replacement or new-installation push-button operator for industrial control panels and enclosures requiring a standard 30 mm mounting hole push-button switch.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize and lock out the control panel before removing any existing operator or making wiring connections. Verify the enclosure NEMA rating is compatible with the installation environment before mounting. Confirm circuit voltage does not exceed the 600-volt rating of this switch prior to energizing.
