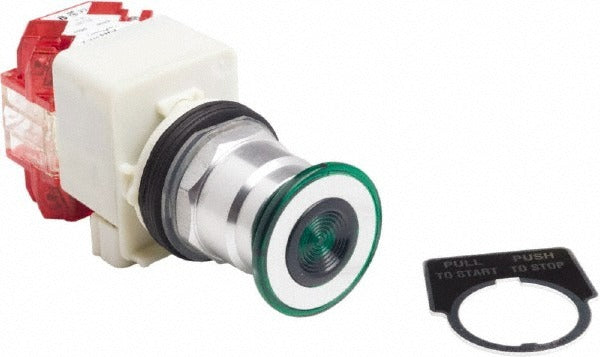

Schneider Electric 9001KR8P1GH25 Push-button Switch

Product Description

The SCHNEIDER ELECTRIC 9001KR8P1GH25 is a 30 mm mounting hole push-button switch rated for 600 volts AC and 10 amps. It supports both maintained (MA) and momentary (MO) operation modes, making it adaptable to a wide range of control circuit applications. The switch features an extended (straight) green push button and a NC/NO contact configuration. It is designed for installation by licensed electricians and control panel technicians working on industrial and commercial control systems where durable, panel-mount switching components are required.

This push-button switch is suited for use in industrial control panels, machine operator stations, and commercial electrical enclosures. Its NEMA ratings of 1, 2, 3, 3R, 4, 6, 12, and 13 cover a broad range of environmental conditions from indoor general-purpose use through outdoor, watertight, and corrosion-resistant applications. The green button color is standard for start or run functions in typical control circuit conventions. Both maintained and momentary operation modes allow the same unit to serve multiple wiring configurations depending on installation need.

Key Features

• 30 mm mounting hole diameter for standard industrial panel cutouts
• Dual operation modes: maintained (MA) and momentary (MO)
• NC/NO contact configuration supports flexible circuit wiring
• Extended (straight) green push button for high-visibility operator identification
• Rated 600 volts AC at 10 amps for robust control circuit performance
• NEMA ratings 1, 2, 3, 3R, 4, 6, 12, and 13 for broad environmental suitability

Compatibility

Designed as an OEM-style replacement and panel-mount component for industrial and commercial control enclosures requiring a 30 mm push-button switch with 600 VAC rating and NEMA 4 or higher environmental protection.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the control panel before mounting or wiring the switch. Verify the panel cutout diameter matches the 30 mm mounting hole specification before installation. Confirm contact configuration (NC or NO) matches the intended control circuit logic before completing wiring.
