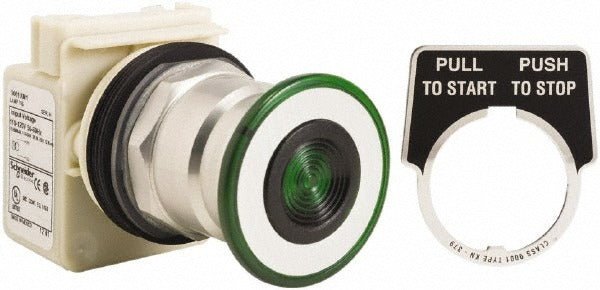

Schneider Electric 9001KR8P1G Push-button Switch 600V

Product Description

The SCHNEIDER ELECTRIC 9001KR8P1G is an illuminated push-button switch rated for 600 volts, designed for industrial and commercial control panel applications. It features a 30 mm (1.18 inch) mounting hole diameter and is available in both maintained (MA) and momentary (MO) operation types, giving installers flexibility depending on circuit requirements. The operator is green, round, and extended (straight) in profile. Built to resist dust, oil, and water ingress, this switch meets NEMA ratings 1, 2, 3, 3R, 4, 6, 12, and 13, making it suitable for demanding environments where protection against contaminants is required.

This push-button switch is used in industrial control panels, motor control circuits, machine tool wiring, and similar electrical systems found in commercial and light industrial settings. It is appropriate for new installations and direct replacement service where a 30 mm panel-mount illuminated push-button is specified. Electricians and industrial controls technicians are the primary installers. The illuminated green operator provides a clear visual status indicator at the control station.

Key Features

• 600-volt rating supports a wide range of industrial control circuits
• Dual operation modes: Maintained (MA) and Momentary (MO) in one unit
• Illuminated green extended round operator for clear visual indication
• Dusttight, oiltight, and watertight construction for harsh environments
• NEMA ratings 1, 2, 3, 3R, 4, 6, 12, and 13 certified
• CE, CSA, and UL Listed (File No. E42259, CCN NKCR) certifications

Compatibility

Designed as an OEM-style replacement or new-install push-button switch for 30 mm panel cutout applications in industrial and commercial control panel assemblies.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize and lock out the control panel before mounting or wiring this switch. Verify the panel cutout measures 30 mm (1.18 inches) in diameter before installation. Do not exceed the rated voltage for the switch or the NEMA enclosure rating of the host panel.
