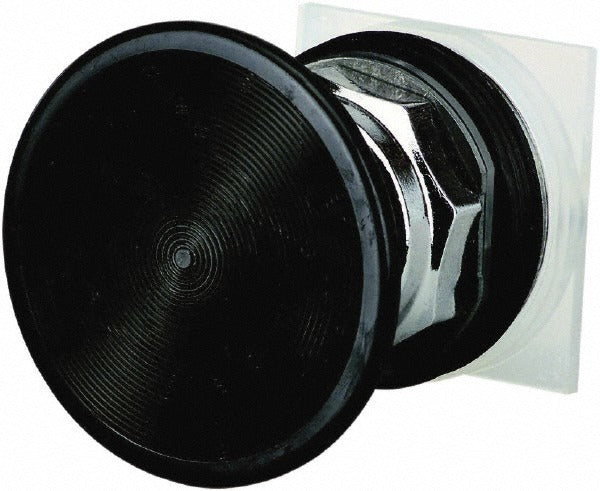

Schneider Electric 9001KR5B Push-button Switch 600V

Product Description

The SCHNEIDER ELECTRIC 9001KR5B is a momentary push-button switch designed for industrial and commercial control panel applications. Rated at 600 volts, it features a 30 mm (1.18 inch) mounting hole diameter and a black, round, extended straight push button. The momentary operation means the switch activates only while pressed and returns to its default state upon release. Its dusttight, oiltight, and watertight construction makes it suitable for demanding environments where contaminants and moisture are present. Licensed electricians and panel builders install this type of switch in motor control centers, machine operator stations, and industrial enclosures.

This push-button switch is suited for use in industrial control stations, operator interface panels, and machinery requiring momentary contact inputs. Its NEMA ratings cover a wide range of enclosure types, making it appropriate for both indoor and outdoor installations where environmental protection is required. The extended push button profile allows for reliable actuation even when wearing work gloves, a practical consideration in plant and field environments.

Key Features

• Momentary operation returns switch to default state upon release
• 600-volt rating supports industrial control circuit applications
• 30 mm (1.18 inch) mounting hole diameter for standard industrial panel cutouts
• Extended straight round black push button for easy actuation
• Dusttight, oiltight, and watertight construction for harsh environments
• NEMA 1, 2, 3, 3R, 4, 6, 12, and 13 ratings provide broad enclosure compatibility

Compatibility

Designed as an OEM-style replacement push-button switch for industrial control stations and operator panels using a standard 30 mm mounting hole diameter.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the control panel before removing or installing this switch. Verify that the panel enclosure NEMA rating matches the environmental conditions of the installation site. Confirm wire terminations are secure and that the switch body is properly torqued into the mounting hole per the manufacturer installation documentation.
