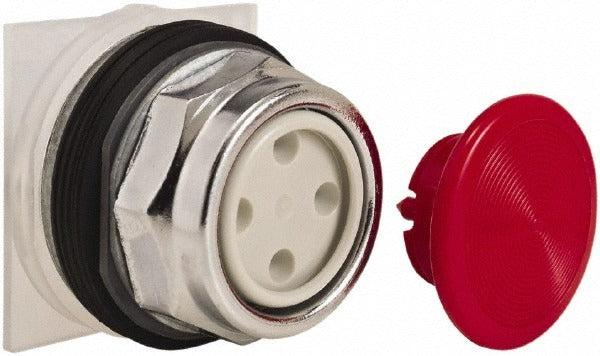

Schneider Electric 9001KR4R Push-button Switch 600V Momentary

Product Description

The SCHNEIDER ELECTRIC 9001KR4R is a heavy-duty momentary push-button switch designed for industrial control panel and machinery applications. Rated at 600 volts, it fits a 30 mm mounting hole and features a red, round, extended straight push button. The switch carries a NEMA enclosure rating covering Types 1, 2, 3, 3R, 4, 6, 12, and 13, making it suitable for dusttight, oiltight, and watertight installations. Licensed electricians and control panel builders install this switch in motor control centers, operator stations, and machine control circuits where a momentary actuation is required.

This switch is well suited for residential and commercial control panels as well as light industrial machinery where a robust, sealed operator interface is needed. Its watertight and oiltight construction makes it appropriate for wash-down environments, outdoor enclosures, and wet-location control stations. The extended button profile allows quick, positive actuation even when the operator is wearing gloves. Typical installation scenarios include start or stop stations, jog controls, and emergency-stop auxiliary circuits that call for a 30 mm panel-mount operator.

Key Features

• Momentary operation returns button to rest position upon release, suited for start or jog functions
• 600-volt rating supports a wide range of industrial control circuit voltages
• 30 mm mounting hole diameter fits standard 30 mm operator enclosures and panel cutouts
• Dusttight, oiltight, and watertight construction per NEMA Types 1, 2, 3, 3R, 4, 6, 12, and 13
• Red, round, extended straight button provides clear visual identification for stop or alert functions
• CE, CSA, and UL Listed certifications meet common North American and international compliance requirements

Compatibility

Designed as an OEM-style replacement and standard panel-mount operator for 30 mm push-button switch assemblies requiring a momentary, extended red button in NEMA-rated enclosures.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lockout/tagout all circuits before mounting or wiring the switch. Verify the panel or enclosure cutout is clean and sized for a 30 mm operator before inserting the switch body. Do not exceed the rated voltage of 600 volts on any connected circuit.
