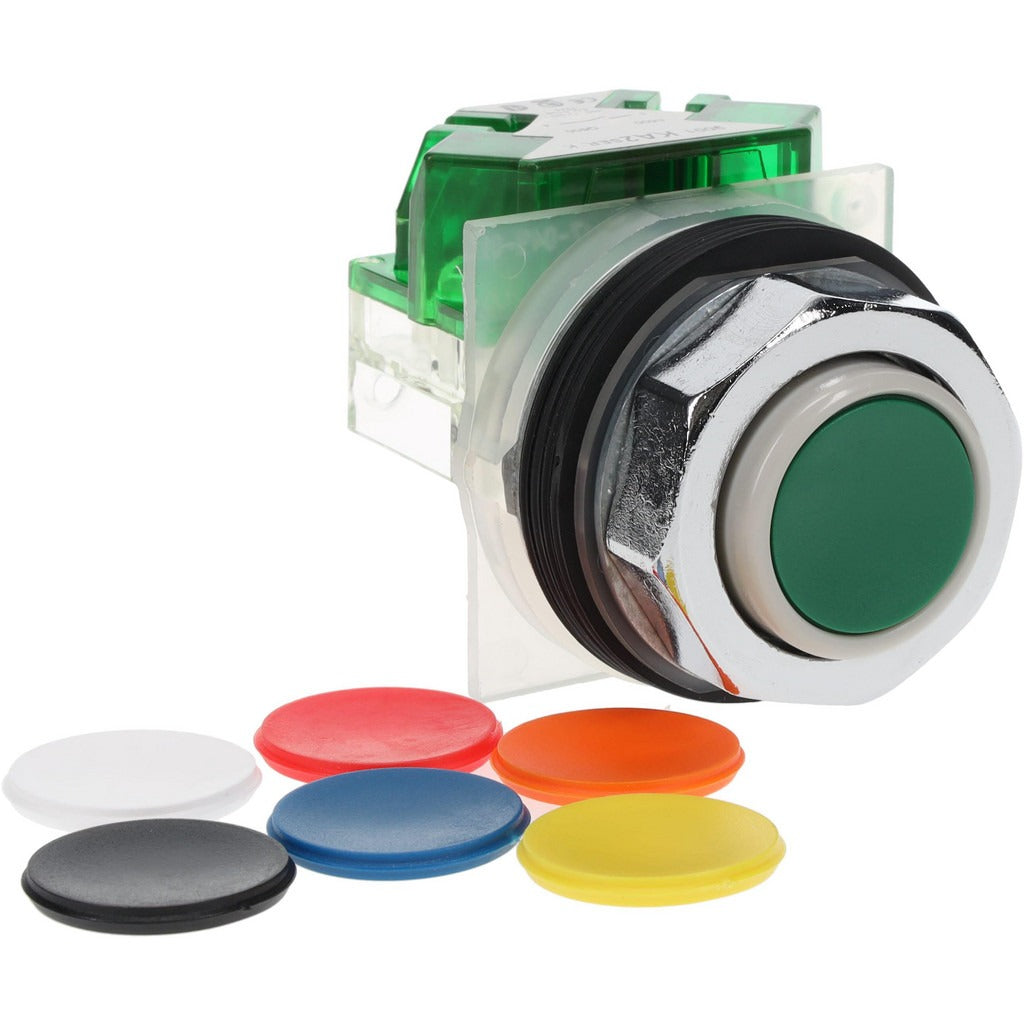

Schneider Electric 9001KR3UH5 Push-button Switch 600V 10A

Product Description

The SCHNEIDER ELECTRIC 9001KR3UH5 is a heavy-duty momentary push-button switch rated for 600 volts AC and 10 amps, designed for industrial control panel applications. It features a 30 mm mounting hole diameter, an extended straight push button with an octagonal shape, and a metal push button construction. The normally open (NO) contact configuration makes it a standard choice for momentary start circuits. At 0.27 pounds, it is compact and built to fit standard 30 mm operator cutouts found throughout industrial and commercial electrical control enclosures.

This switch is suited for use in industrial control panels, machine tool stations, and process control enclosures where momentary operator input is required. The multicolor octagon extended button profile provides clear visual differentiation in multi-operator panel layouts. Its NEMA ratings of 1, 2, 3, 3R, 4, 12, and 13 make it appropriate for both indoor and outdoor-rated enclosures, including oil-tight and watertight applications. Licensed electricians and control panel builders are the primary installers of this type of device.

Key Features

• Momentary (MO) operation with normally open (NO) contact configuration
• 600 volt AC rating at 10 amps for heavy industrial control duty
• 30 mm mounting hole diameter fits standard industrial operator cutouts
• Extended octagon metal push button for clear panel identification
• NEMA 1, 2, 3, 3R, 4, 12, and 13 enclosure ratings
• Meets CSA, UL 508, EN/IEC 60947, and JIS standards

Compatibility

Designed as an OEM-style replacement or new installation push-button operator for industrial control panels using standard 30 mm mounting hole cutouts.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and local codes. De-energize and lock out the control panel before mounting or wiring the switch. Verify the enclosure NEMA rating matches the environmental requirements of the installation location. Do not exceed the rated 600 volt AC and 10 amp electrical values for the contact circuit.
