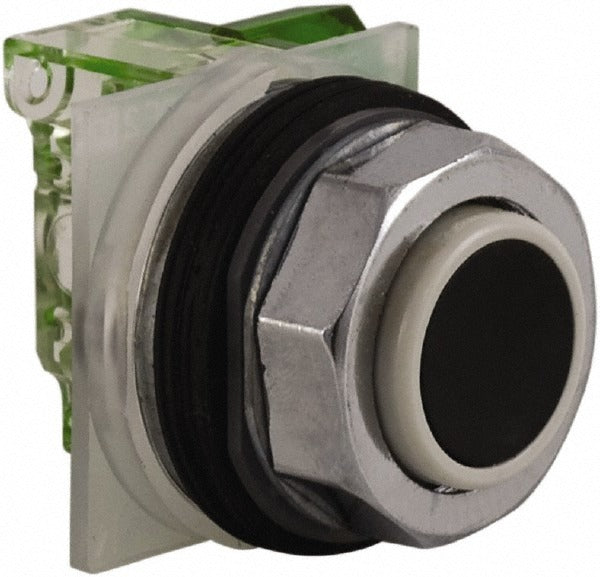

Schneider Electric 9001KR3BH5 Push-button Switch 600V

Product Description

The SCHNEIDER ELECTRIC 9001KR3BH5 is a heavy-duty momentary push-button switch rated for 600 volts AC and 10 amps, designed for industrial and commercial control panel applications. It features an extended straight actuator in black and a normally open (NO) contact configuration. The 30 mm mounting hole diameter fits standard 30 mm cutout enclosures. Electricians and control panel technicians install this switch in motor control centers, machine control enclosures, and operator interface panels where a momentary NO switch action is required.

This push-button switch is suited for industrial control circuits in both light commercial and heavy-duty environments. Its NEMA ratings cover a broad range of enclosure types, making it appropriate for indoor dry locations, damp or dripping water environments, dust-tight applications, and limited submersion conditions. It is commonly installed in operator stations, conveyor controls, and process automation panels requiring a reliable momentary contact input.

Key Features

• Momentary (MO) action with normally open (NO) contact configuration
• Extended straight black actuator for positive tactile engagement
• 600 volt AC rating supports high-voltage control circuit applications
• 30 mm mounting hole diameter fits standard 30 mm panel cutouts
• NEMA 1, 2, 3, 3R, 4, 6, 12, and 13 rated for broad enclosure compatibility
• 10 amp contact rating for reliable switching in industrial control circuits

Compatibility

Designed as an OEM-style replacement or new-installation push-button switch for industrial and commercial control panels using standard 30 mm mounting cutouts.

Installation Notes

Installation should be performed by a licensed electrician following applicable NEC requirements. De-energize and lock out the control panel before removing any existing switch or making wiring connections. Verify the panel enclosure NEMA rating matches the application environment before mounting. Confirm contact configuration and circuit voltage are compatible with the control circuit before returning the system to service.
