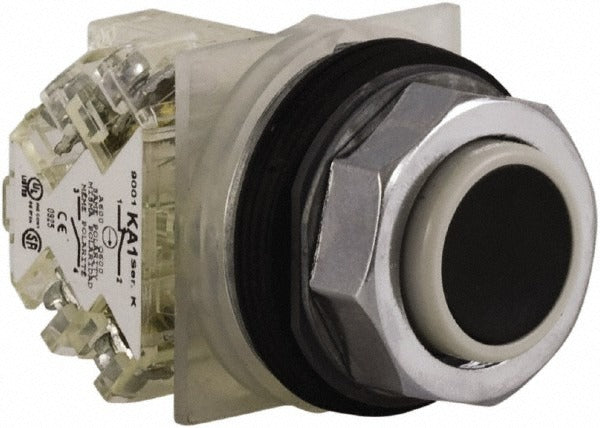

Schneider Electric 9001KR3BH13 Push-button Switch 600V

Product Description

The SCHNEIDER ELECTRIC 9001KR3BH13 is a momentary push-button switch rated for 600 volts AC and 10 amps, designed for industrial control panel applications. It features a 30 mm mounting hole diameter and an extended straight push-button actuator in black. The NC/NO contact configuration provides both normally closed and normally open switching in a single unit. Licensed electricians and panel builders install this switch in machine control, motor control centers, and operator interface panels where momentary actuation is required.

This switch is suited for industrial and commercial installations where a NEMA-rated enclosure is required. Its NEMA 1, 2, 3, 3R, 4, 6, 12, and 13 ratings make it appropriate for a wide range of environments, from standard indoor panels to wet or washdown locations. The 30 mm mounting hole is a standard industrial control format, making this a common fit for operator stations and control enclosures used in manufacturing, HVAC controls, and building automation panels.

Key Features

• Momentary operation with NC/NO contact configuration for flexible wiring options
• 600 volt AC rating supports use in standard industrial power circuits
• Extended straight actuator provides positive tactile actuation in panel environments
• Black button color for standard function identification on control panels
• NEMA 1, 2, 3, 3R, 4, 6, 12, and 13 ratings cover indoor, outdoor, and wet locations
• 30 mm mounting hole diameter matches standard industrial operator interface cutouts

Compatibility

Designed as an OEM-style replacement for 30 mm industrial push-button switch assemblies in control panels and operator stations requiring momentary NC/NO switching.

Installation Notes

Installation should be performed by a licensed electrician following applicable NEC requirements. De-energize and lock out the control panel before removing or installing the switch. Verify contact configuration wiring against the panel schematic before restoring power. Do not exceed the rated voltage or amperage for the switch in service.
