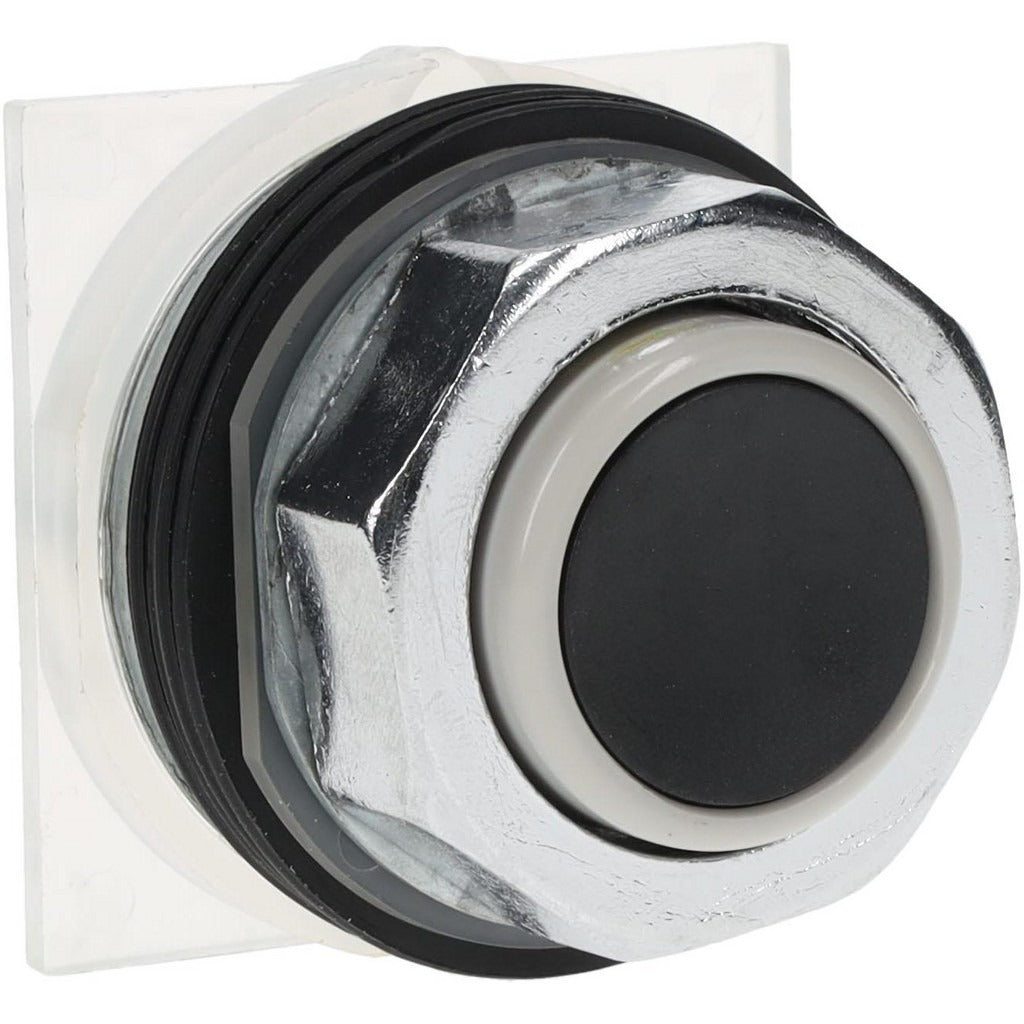

Schneider Electric 9001KR3B Push-button Switch Momentary Black

Product Description

The SCHNEIDER ELECTRIC 9001KR3B is a momentary push-button switch operator designed for industrial and commercial control panel applications. It features an extended straight-profile black button and mounts through a 30 mm panel cutout. Operation is momentary, meaning the circuit is active only while the button is depressed. Rated for NEMA 1, 2, 3, 3R, 4, 6, 12, and 13 enclosures, this operator handles a wide range of environmental conditions from general indoor use through outdoor, watertight, and submersible applications. Electricians and control panel builders use this operator when replacing or building maintained-contact or momentary switching circuits in machine control and process equipment.

This switch operator is suited for use in light industrial, commercial, and heavy industrial control panel environments. Typical installations include motor starters, conveyor controls, pump panels, and general-purpose machine control enclosures. The 30 mm mounting hole diameter aligns with the widely used 30 mm operator standard, making it a common form-factor in panel construction and field replacement work. The extended button profile provides a tactile target that works well in gloved-hand environments.

Key Features

• Momentary (MO) operation — circuit active only while button is held
• Extended straight-profile button for positive tactile engagement
• Black operator color for standard stop or general-purpose function indication
• 30 mm mounting hole diameter — fits standard 30 mm panel cutouts
• NEMA ratings 1, 2, 3, 3R, 4, 6, 12, and 13 for broad environmental coverage

Compatibility

Designed as an OEM-style replacement or new-installation operator for 30 mm push-button control stations and enclosures requiring a momentary black extended button.

Installation Notes

Installation is typically performed by a licensed electrician. De-energize and lock out the control panel before removing the existing operator or installing this unit. The 30 mm panel cutout should be clean and free of burrs before mounting. Refer to NEC guidelines and applicable local codes for control circuit wiring and enclosure requirements.
