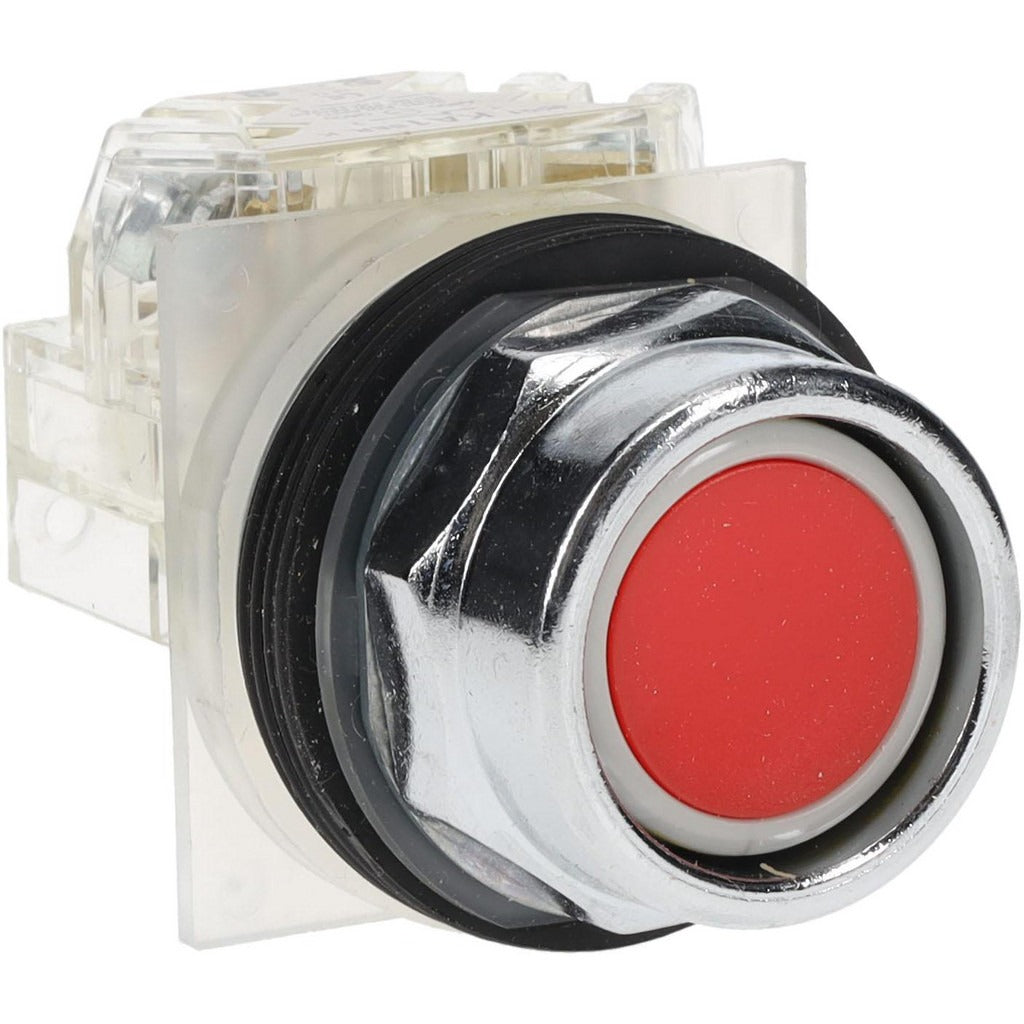

Schneider Electric 9001KR2RH13 Push-button Switch 30mm 600V

Product Description

The SCHNEIDER ELECTRIC 9001KR2RH13 is a momentary push-button switch rated for 600 volts AC and 10 amps, designed for industrial and commercial control panel applications. It features a 30 mm mounting hole diameter and an extended straight push-button actuator in red. The NC/NO contact configuration allows it to serve normally closed or normally open circuit functions within a single device. Licensed electricians and control panel technicians install this switch in motor control centers, machine operator stations, and process control enclosures where reliable momentary switching is required.

This switch is suited for use in both light-duty and demanding industrial environments. Its NEMA ratings of 1, 2, 3, 3R, 4, 6, 12, and 13 make it appropriate for indoor dry locations through outdoor and wash-down service conditions. The red extended actuator provides a clear visual indicator for stop, emergency stop, or other critical operator functions. It installs in a standard 30 mm panel cutout, which is a widely used diameter across industrial control equipment.

Key Features

• 600V AC rating at 10 amps supports a broad range of industrial control circuits
• Momentary operation returns to its default state when the button is released
• NC/NO contact configuration provides wiring flexibility in a single unit
• Extended straight red actuator improves operator visibility and ergonomics at control stations
• NEMA 1, 2, 3, 3R, 4, 6, 12, and 13 ratings cover indoor through wet and dust-tight enclosure requirements
• Standard 30 mm mounting hole diameter fits widely used panel cutout tooling and enclosures

Compatibility

Designed as an OEM-style replacement or new installation component for industrial control panels and operator stations that accept a standard 30 mm push-button switch.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and applicable local codes. De-energize the panel and verify zero voltage with a meter before installing or replacing any control switch. Torque the mounting nut to the enclosure manufacturer's specified value and confirm the contact block is fully seated before restoring power. Verify correct NC and NO terminal terminations against the circuit schematic before commissioning.
