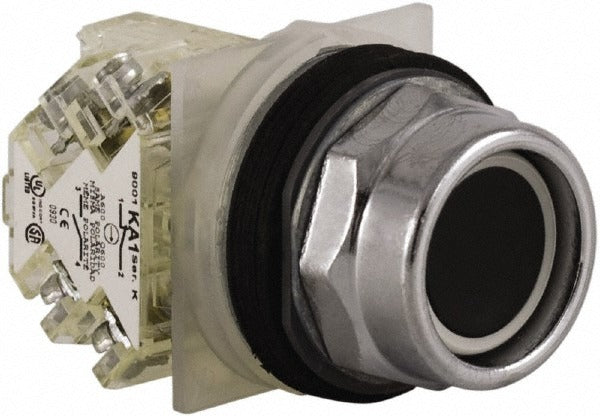

Schneider Electric 9001KR2BH13 Push-button Switch 600V

Product Description

The SCHNEIDER ELECTRIC 9001KR2BH13 is a momentary push-button switch rated for 600 volts AC and 10 amps, designed for industrial control panel and machine tool applications. It features a 30 mm mounting hole diameter and an extended straight actuator in black. The NC/NO contact configuration makes it suitable for both normally closed and normally open control circuits. Licensed electricians and industrial maintenance technicians install this switch in control enclosures where panel-mount switching is required. At 0.3 pounds, it is a compact, single-unit component built to NEMA standards for a wide range of environmental conditions.

This push-button switch is used in industrial and commercial control panel installations where momentary actuation is required. The extended straight actuator provides positive tactile feedback for operator controls on machinery, motor starters, and automation panels. It is appropriate for both indoor and outdoor-rated enclosures given its broad NEMA rating coverage. Single-unit packaging makes it suitable for replacement service work or new panel builds where individual component sourcing is needed.

Key Features

• Momentary (MO) operation with NC/NO contact configuration for flexible circuit integration
• 600 volt AC rating supports use in heavy-duty industrial control circuits
• 30 mm mounting hole diameter follows standard industrial panel cutout sizing
• Extended straight black actuator provides clear visual identification and positive operator feel
• NEMA ratings 1, 2, 3, 3R, 4, 6, 12, and 13 cover a broad range of enclosure environments including wet and dusty locations
• 10 amp contact rating handles typical motor control and pilot duty loads

Compatibility

Designed as an OEM-style replacement push-button switch for industrial control panels and enclosures requiring a standard 30 mm momentary switching component.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). Disconnect and lock out all power to the control panel before removing an existing switch or installing a new one. Verify the panel cutout measures 30 mm before mounting. Confirm that the contact configuration wired to the circuit matches the NC or NO terminal as required by the control schematic.
