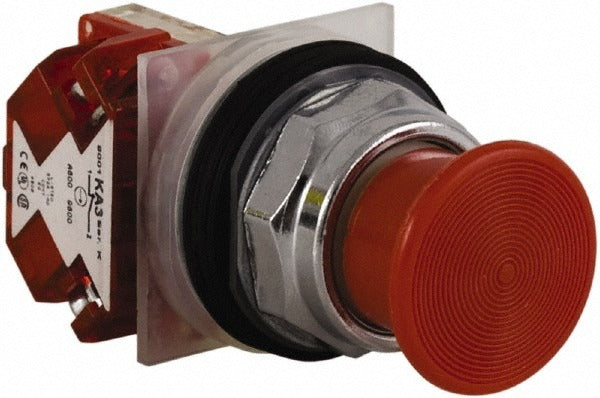

Schneider Electric 9001KR24RH6 Push-button Switch 600V

Product Description

The SCHNEIDER ELECTRIC 9001KR24RH6 is a momentary-action push-button switch rated for 600 volts AC and 10 amps. It features a 30 mm mounting hole diameter, an extended straight push button in red, and a normally closed (NC) contact configuration. The switch is housed in a rugged enclosure rated for NEMA 1, 2, 3, 3R, 4, 6, 12, and 13 environments, making it suitable for a wide range of industrial and commercial control panel applications. Licensed electricians and control panel technicians are the primary installers of this device.

This push-button switch is used in motor control centers, machine control panels, and industrial automation enclosures where momentary NC switching is required. The red extended button provides clear visual identification for stop or alert functions. Its multi-NEMA rating supports installation in both indoor and outdoor locations, including wash-down and submersion-exposed environments classified under NEMA 4 and 6.

Key Features

• Momentary (MO) operation with normally closed (NC) contact configuration
• 600 volt AC rating at 10 amps for robust control circuit performance
• 30 mm mounting hole diameter fits standard 30 mm control panel cutouts
• Extended straight red push button for high-visibility stop or alarm identification
• Multi-NEMA rating: 1, 2, 3, 3R, 4, 6, 12, and 13 for versatile enclosure compatibility

Compatibility

Designed as an OEM-style replacement for 30 mm push-button switch assemblies used in industrial and commercial control panel applications requiring 600V AC momentary NC switching.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC guidelines. De-energize and lock out the panel before mounting or wiring the switch. The 30 mm mounting hole should be deburred and clean before inserting the switch body. Verify contact configuration and circuit function with a meter before restoring power.
