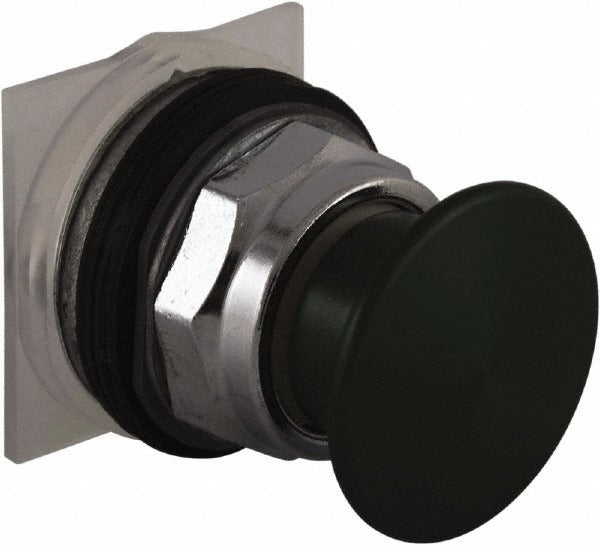

Schneider Electric 9001KR24GM Push-button Switch 30mm

Product Description

The SCHNEIDER ELECTRIC 9001KR24GM is a 30 mm momentary push-button switch designed for industrial control panel and machine control applications. It features an extended mushroom-head operator in green with a round, metal construction and a non-illuminated face. The momentary (MO) action means the switch activates only while held and returns to its resting state upon release. Weighing 0.3 pounds and measuring 3.7 inches in length, 2.2 inches in width, and 1.9 inches in height, this switch fits a standard 30 mm mounting hole. Electricians and panel builders working on control circuit assemblies will find it a straightforward fit for operator interface stations.

This push-button switch is intended for use in industrial and commercial control panels, motor control centers, and machine operator stations requiring a momentary control input. The green color convention typically signals start or run functions in control circuit wiring. Its NEMA ratings of 1, 2, 3, 3R, 4, 6, 12, and 13 make it suitable for environments ranging from general indoor use to watertight and oil-tight enclosures. Panel builders and licensed electricians working on control station assemblies will find this part applicable across a broad range of indoor and outdoor industrial installations.

Key Features

• 30 mm mounting hole diameter for standard industrial panel cutouts
• Momentary (MO) operation — returns to off state when released
• Extended mushroom-head operator in round, green metal construction
• Non-illuminated operator — no pilot light or lens required
• NEMA ratings 1, 2, 3, 3R, 4, 6, 12, and 13 for versatile enclosure compatibility
• Meets UL 508, CSA C22.2 No. 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520, and JIS C 852 standards

Compatibility

Designed as an OEM-style replacement or new-installation push-button operator for 30 mm industrial control panel cutouts.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements and local codes. De-energize the control panel and lock out or tag out all power sources before beginning work. The switch mounts through a 30 mm panel cutout and is secured from the rear with the appropriate contact block and retaining hardware. Verify that the enclosure NEMA rating meets the requirements of the installation environment before mounting.
