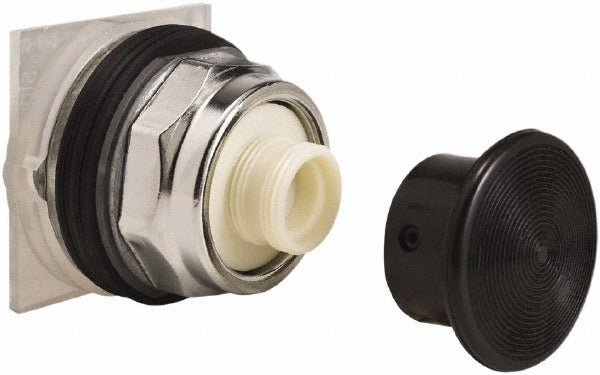

Schneider Electric 9001KR24B Push-button Switch 30mm

Product Description

The SCHNEIDER ELECTRIC 9001KR24B is a momentary push-button switch designed for industrial and commercial control panel applications. It features a 30 mm mounting hole diameter and an extended straight black pushbutton actuator. The momentary (MO) operation type means the switch activates only while pressed and returns to its default state upon release. Rated across multiple NEMA enclosure types, this switch is built to perform in demanding environments. Electricians and control panel technicians install this type of device in motor control centers, operator interface stations, and machine control enclosures.

This switch is suited for use in industrial control panels, automation equipment, and machinery requiring operator input stations. The extended actuator style improves visibility and ease of operation in high-cycle applications. Its multi-NEMA rating makes it appropriate for both indoor and select outdoor or wet-location enclosures depending on the panel assembly. Licensed electricians typically specify and install this type of component in new panel builds or as a direct replacement in existing control stations.

Key Features

• 30 mm mounting hole diameter — standard industrial panel cutout size
• Momentary (MO) operation — returns to off state when released
• Extended straight black actuator for clear operator identification
• NEMA ratings: 1, 2, 3, 3R, 4, 6, 12, and 13 — broad enclosure compatibility
• Compact form factor at 3.7 x 2.2 x 1.9 inches
• Lightweight at 0.27 pounds for easy panel integration

Compatibility

Designed as an OEM-style replacement for 30 mm industrial push-button control stations and operator interface assemblies requiring momentary actuation.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize and lock out the control panel before removing or installing any switch component. Verify the panel enclosure NEMA rating is compatible with the installation environment before mounting. Do not exceed the rated enclosure type for the assembled panel.
