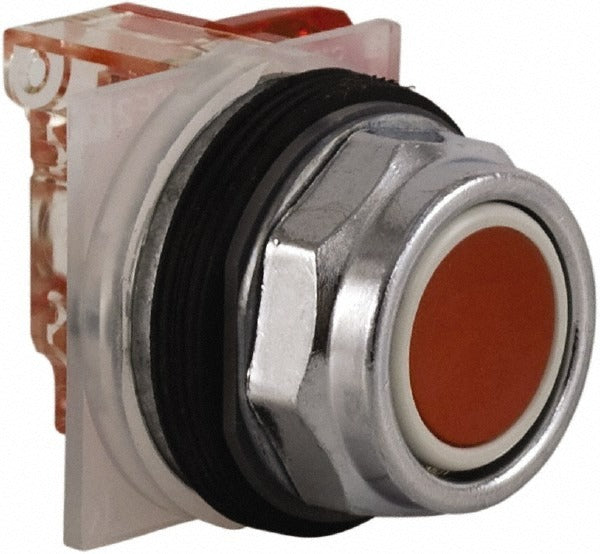

Schneider Electric 9001KR1RH6 Push-button Switch 30mm 600V

Product Description

The SCHNEIDER ELECTRIC 9001KR1RH6 is a momentary push-button switch rated for 600 volts AC and 10 amps, designed for industrial control panel applications. It features a 30 mm mounting hole diameter, a red extended (straight) push-button actuator, and a normally closed (NC) contact configuration. The momentary operation type means the switch activates only while pressed and returns to its normal state upon release. This switch is installed by electricians and controls technicians in motor control centers, machine control panels, and operator interface stations where reliable momentary switching is required.

The 9001KR1RH6 is suited for use in commercial and industrial control panel environments. Its NEMA ratings of 1, 2, 3, 3R, 4, 6, 12, and 13 make it appropriate for indoor dry locations through outdoor and washdown-rated enclosures. The red actuator color is commonly used for stop or emergency-function labeling in machine control applications. Electricians and panel builders installing or servicing motor starters, control circuits, and operator stations will find this switch a direct-fit option for 30 mm cutout panels.

Key Features

• Momentary (MO) operation returns switch to NC state when released
• Normally closed (NC) contact configuration
• Red extended (straight) push-button actuator for stop or safety-function identification
• Rated 600 volts AC at 10 amps for industrial control circuit use
• 30 mm mounting hole diameter fits standard industrial panel cutouts
• NEMA ratings 1, 2, 3, 3R, 4, 6, 12, and 13 for broad enclosure compatibility

Compatibility

Designed as an OEM-style replacement for 30 mm industrial push-button switch assemblies in control panels and motor control centers using standard 30 mm mounting cutouts.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize and lock out the control panel before removing or installing this switch. Verify contact configuration and circuit logic before restoring power, as substituting an NC contact for an NO contact in an existing circuit without review can cause unintended equipment operation. Mounting hardware torque and wiring termination procedures should follow the manufacturer documentation included with the switch.
