Schneider Electric 9001KQ13B Push-button Switch 30mm

Product Description

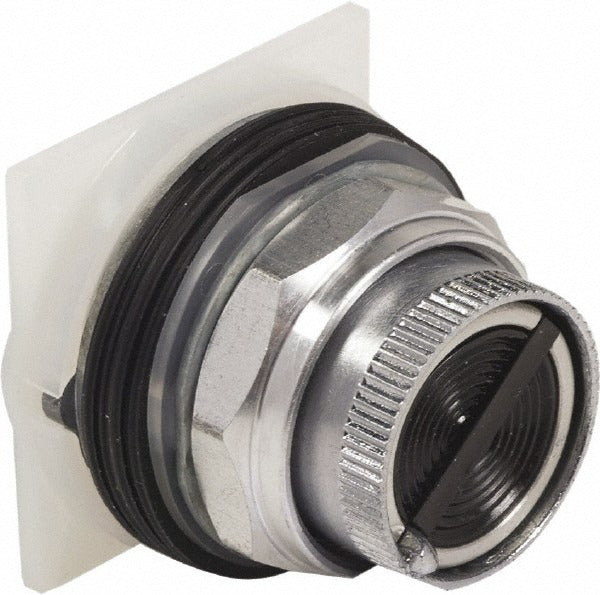

The Schneider Electric 9001KQ13B is a heavy-duty industrial push-button switch designed for control panel and machine operator interface applications. It features a 30 mm mounting hole diameter and is available in both maintained and momentary operation modes, giving installers flexibility across a wide range of control circuit configurations. The operator is a round, non-illuminated black pushbutton with a chromium-plated metal bezel and a full metal guard for durability in demanding environments. At 0.26 pounds, it is a compact, robust control component suited for licensed electricians and industrial control technicians working on motor control centers, control panels, and automated machinery.

This push-button switch is suited for industrial and commercial control circuit installations where a NEMA-rated operator switch is required. The dual operation mode — maintained and momentary — makes it applicable in start-stop stations, jog controls, and selector-style operator panels. Its NEMA ratings cover a broad range of enclosure types, including standard, watertight, and oil-tight environments, making it a practical fit for factory floor, outdoor, and washdown-adjacent applications.

Key Features

• 30 mm mounting hole diameter for standard industrial panel cutouts
• Dual operation: Maintained (MA) and Momentary (MO) configurations
• Non-illuminated round black pushbutton operator
• Chromium-plated metal bezel with full metal guard for rugged durability
• NEMA ratings 1, 2, 3, 3R, 4, 6, 12, and 13 — suitable for a wide range of enclosure environments
• CE marked, CSA certified (File No. LR25490, Class 3211 03), and UL listed (File No. E42259, CCN NKCR)

Compatibility

Designed as an OEM-style replacement or new-installation operator switch for industrial control panels using standard 30 mm push-button mounting configurations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the control panel and verify zero voltage at the switch terminals before beginning any wiring work. Mount the operator through the panel cutout and secure with the provided hardware before making any electrical connections. Do not exceed the voltage and current ratings of the switch contact block used with this operator.
