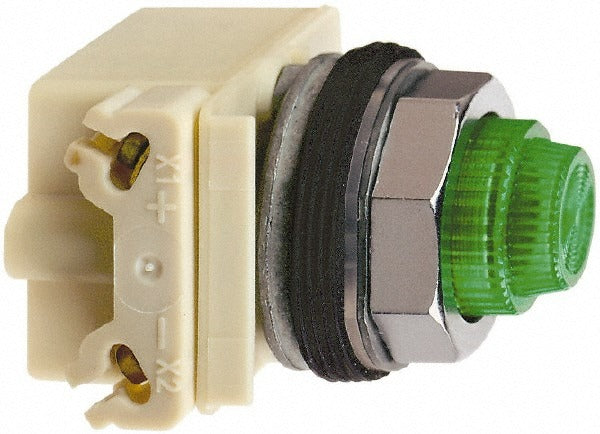

Schneider Electric 9001KP7G31 Pilot Light 240V Green

Product Description

The SCHNEIDER ELECTRIC 9001KP7G31 is a 240-volt AC incandescent pilot light with a green round lens, designed for panel and machine control applications. It uses a screw clamp connector for secure termination and is built to meet a broad range of industrial and commercial electrical standards. The unit measures 3.7 inches in length, 2.2 inches in width, and 1.9 inches in height, and weighs 0.5 pounds. Licensed electricians and industrial controls technicians install this type of indicator light in control panels, motor starters, and operator interface stations to provide clear visual status indication.

This pilot light is suited for use in residential, commercial, and industrial control panel assemblies operating at 240 volts AC. It is appropriate for machine control enclosures, HVAC equipment control panels, pump control stations, and similar applications where a durable, standards-compliant status indicator is required. The round lens profile and screw clamp termination make it compatible with standard 30 mm panel cutout configurations typical in industrial operator interface mounting.

Key Features

• 240 VAC rated incandescent lamp for clear, reliable status indication
• Green round lens for straightforward run or on-state signaling
• Screw clamp connector for secure, tool-assisted field wiring
• Meets NEMA 1, 2, 3, 3R, 4, 6, 12, and 13 enclosure ratings
• Compliant with UL 508, CSA C22.2 No. 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520, JIS C 852, and RoHS requirements

Compatibility

Designed as an OEM-style replacement or direct-install incandescent pilot light for 240 VAC industrial and commercial control panel applications requiring a round green lens indicator.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and any applicable local codes. Disconnect and lock out all power to the control panel before removing an existing pilot light or installing this unit. Use appropriately rated wire and confirm the screw clamp terminations are fully seated before restoring power. Do not exceed the rated 240 VAC supply voltage.
