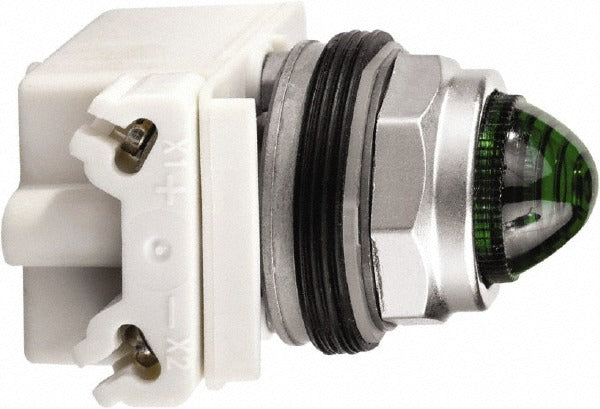

Schneider Electric 9001KP38LGG9 Led Pilot Light 120V Green

Product Description

The SCHNEIDER ELECTRIC 9001KP38LGG9 is a 120-volt LED pilot light designed for panel-mounted status indication in industrial and commercial control applications. It features a round green lens and a screw clamp connector for secure field wiring. The LED lamp type provides long service life and low power consumption compared to incandescent alternatives. At 0.32 pounds, this compact indicator measures 3.8 inches in length, 1.8 inches in width, and 2.2 inches in height. Licensed electricians and control panel builders typically install this device during new panel construction or as a direct replacement in existing assemblies.

This pilot light is suited for use in control panels, machine operator stations, and industrial enclosures where clear status indication is required. Its NEMA 1/2/3/3R/4/6/12/13 ratings make it appropriate for both general-purpose indoor installations and more demanding environments requiring protection against dust, oil, and water ingress. The screw clamp connector accommodates a range of wire sizes and speeds up termination work in production or field environments.

Key Features

• 120-volt AC operation with LED lamp for long service life
• Green round lens for clear at-a-glance status indication
• Screw clamp connector for fast, reliable field wiring
• NEMA 1/2/3/3R/4/6/12/13 rated for broad enclosure compatibility
• RoHS compliant and meets UL 508, CSA, EN/IEC, and JIS standards
• Compact form factor fits standard 30mm pilot light cutouts

Compatibility

Designed as an OEM-style replacement or new-installation pilot light for industrial control panels and operator interface assemblies requiring a 120-volt green LED indicator with a round lens and screw clamp termination.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the control panel and verify absence of voltage before removing any existing pilot light or making wiring connections. The screw clamp terminals should be tightened to secure conductors without over-torquing, following standard panel-wiring practice. Confirm the supply voltage matches the 120-volt rating of the device before restoring power.
