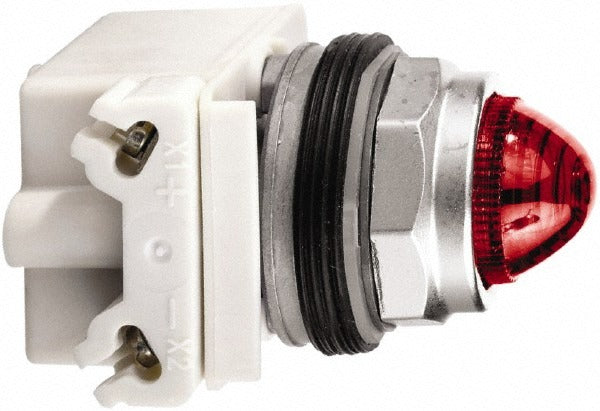

Schneider Electric 9001KP35LRR9 Led Pilot Light 24V Red

Product Description

The SCHNEIDER ELECTRIC 9001KP35LRR9 is a 24-volt LED pilot light designed for industrial control panel applications. It features a round red lens and a screw clamp connector for secure, tool-assisted wiring. The LED lamp type provides long service life and low power draw compared to incandescent alternatives. This pilot light is built to meet a broad range of national and international standards, making it suitable for installations that require multi-certification compliance. Electricians and control panel builders install this indicator light as a status or fault indicator in machine control, motor control centers, and industrial enclosures.

This pilot light is used in residential, commercial, and industrial panel builds wherever a compact 24-volt indicator is required. The round lens format fits standard 30 mm operator cutouts common in control enclosures. It is appropriate for new panel construction and for field replacement of failed indicator lamps in existing control assemblies. The screw clamp connector simplifies wiring termination and reduces the chance of loose connections over time.

Key Features

• 24-volt LED operation for long lamp life and low power consumption
• Red round lens for clear visual status indication
• Screw clamp connector for secure, reliable wiring termination
• Meets UL 508, CSA C22.2 No. 14, NEMA 1/2/3/3R/4/6/12/13, and multiple EN/IEC standards
• RoHS compliant construction
• Compact form factor at 3.7 inches in length

Compatibility

Designed as an OEM-style replacement or new-installation pilot light for 24-volt industrial control panels using standard 30 mm operator cutouts and screw clamp wiring systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC Article 409 for industrial control panels. De-energize and lockout/tagout the control panel before removing or installing any pilot light. Confirm supply voltage matches the 24-volt rating of this device before energizing. Screw clamp terminals should be tightened to the connector manufacturer specification using an appropriate flat-blade screwdriver.
