Schneider Electric 9001KN244BP Legend Plate Off-on

Product Description

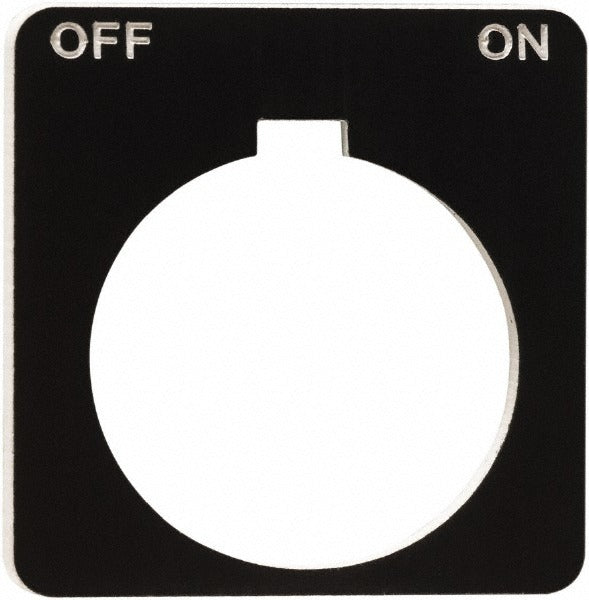

The SCHNEIDER ELECTRIC 9001KN244BP is a square plastic legend plate marked with Off-On text, designed for use with 30mm industrial selector switches and selector pushbuttons. It features a black background with white letters for high-contrast readability in control panel environments. The plate measures 1.75 inches square with a 1.2 inch hole diameter, fitting standard 30mm operator cutouts. This legend plate is installed by electricians and control panel technicians to label switch function and meet industrial labeling requirements.

This legend plate is used in industrial and commercial control panel applications where clear operator identification is required on selector switches and selector pushbuttons. It is specifically designed for use with the Harmony 9001K, SK, and KX series 30mm selector switches and selector pushbuttons. Typical install scenarios include machine control panels, motor starters, and equipment operator interfaces where Off-On labeling is needed for compliance and operator safety.

Key Features

• Off-On legend marking for clear switch position identification
• Black background with white letters for high-contrast visibility
• Square profile at 1.75 inches by 1.75 inches fits standard panel cutouts
• 1.2 inch hole diameter sized for 30mm operator hardware
• Plastic construction provides lightweight and durable panel labeling

Compatibility

Designed for use with Harmony 9001K, SK, and KX series 30mm selector switches and selector pushbuttons.

Installation Notes

Installation is performed by a licensed electrician or qualified control panel technician. De-energize and lock out the control panel before servicing any operator or legend plate components in accordance with NFPA 70E lockout/tagout procedures. The legend plate seats over the operator body and should be aligned squarely before securing the operator assembly. Verify the hole diameter and overall dimensions match the existing panel cutout and operator hardware before installation.
