Schneider Electric 9001KN205RP Emergency Stop Legend Plate

Product Description

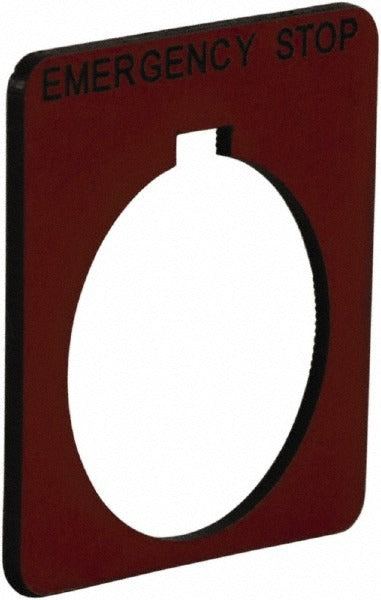

The SCHNEIDER ELECTRIC 9001KN205RP is a square plastic legend plate marked Emergency Stop, designed for use with 30mm pushbutton and pilot light assemblies in industrial control panels. The plate features a red background with black lettering for high-visibility identification at the operator interface. It measures 1.75 inches square and fits a 1.2-inch hole diameter. Electricians and panel builders install this legend plate to label pushbutton stations per NFPA 79 and OSHA lockout-tagout identification requirements. At 0.01 pounds, it ships as a single unit and installs without tools beyond basic hand pressure or a flat-blade screwdriver depending on the host assembly.

This legend plate is used in industrial and commercial control panel applications wherever emergency stop pushbuttons require clear operator labeling. It suits new panel builds and retrofit upgrades on existing pushbutton stations. The compact 1.75-inch square footprint fits standard operator interface cutouts without modification. Maintenance electricians and panel integrators typically source this plate as a direct replacement when original labels become worn, damaged, or illegible during equipment refurbishment.

Key Features

• Emergency Stop legend with red background and black letters for immediate operator recognition
• Square profile at 1.75 inches x 1.75 inches suits standard 30mm pushbutton cutouts
• 1.2-inch hole diameter matches 30mm Harmony series pushbutton and pilot light bodies
• Plastic construction resists moisture and common industrial contaminants
• Lightweight at 0.01 pounds — minimal impact on door or panel weight budgets

Compatibility

Designed for use with Harmony 9001K, 9001SK, and 9001KX series 30mm pushbuttons and pilot lights.

Installation Notes

Installation is performed by a qualified electrician or panel builder. De-energize and lock out the control panel before servicing any pushbutton station or operator interface device per NFPA 70E guidelines. The legend plate seats into the pushbutton operator or legend plate holder — verify the correct mounting method for the specific host device before installation. Do not force the plate into position, as plastic legend plates can crack under excessive pressure.
