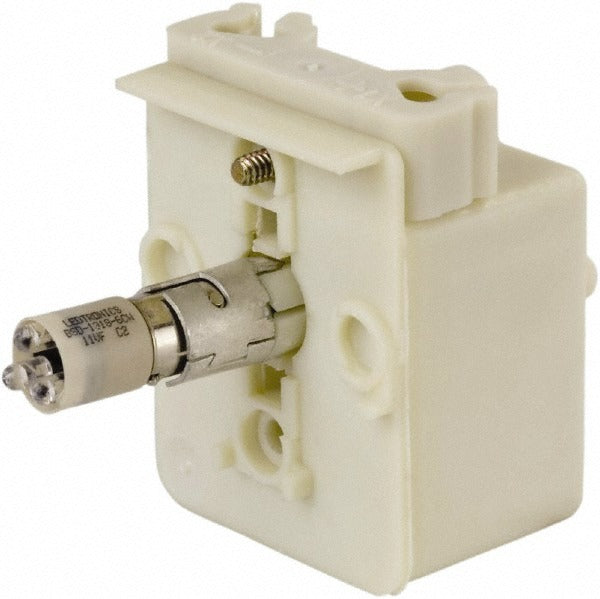

Schneider Electric 9001KM35LW Led Light Module White Lens

Product Description

The SCHNEIDER ELECTRIC 9001KM35LW is an LED light module designed for use in industrial control and operator interface applications. It accepts a wide input voltage range of 24 to 28 volts AC or 24 to 28 volts DC, making it compatible with standard low-voltage control circuits commonly found in machine control panels and push-button stations. The module features a white lens and uses an LED lamp type for long service life and low power draw compared to traditional incandescent pilot lights. Licensed electricians and industrial maintenance technicians are the primary installers of this module.

This LED light module is suited for use in panel-mount operator interface assemblies, push-button stations, and selector switch housings in both commercial and light industrial environments. It is a replacement or supplemental component intended for systems already using compatible 30 mm modular control devices. The module ships individually, with a package quantity of one unit per order.

Key Features

• Operates on 24 to 28 volts AC or 24 to 28 volts DC input voltage
• White lens for clear visual indication in panel and control station applications
• LED lamp type provides extended service life compared to incandescent alternatives
• UL Listed under File No. E42259, CCN NKCR
• CSA Standard certified and CE Certified under File No. LR25490 Class 3211 03
• RoHS compliant construction

Compatibility

Designed as an OEM-style replacement LED light module for modular push-button and operator interface control stations using compatible 30 mm mounting configurations.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the NEC and applicable local codes. De-energize and lock out the control panel before removing or installing any light module. Verify that the supply voltage matches the module rating of 24 to 28 volts AC or DC before energizing. Do not exceed the rated voltage range, as this may damage the LED assembly.
