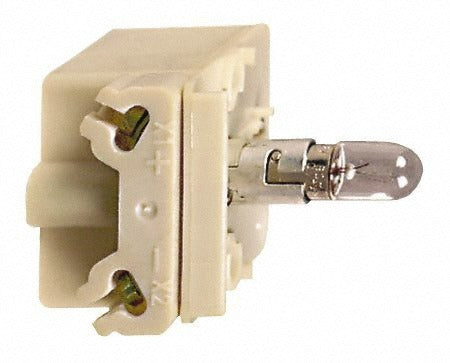

Schneider Electric 9001KM32 Indicating Light 12V

Product Description

The SCHNEIDER ELECTRIC 9001KM32 is an incandescent indicating light rated for 12 VAC and 12 VDC operation. It is used as a panel-mount status indicator in industrial control and electrical distribution applications. The unit provides a clear visual signal for circuit status, equipment state, or alarm conditions. Electricians and control panel technicians install this type of indicating light during new panel builds and replacement service. At 0.14 pounds and compact dimensions, it fits standard operator interface cutouts without requiring additional hardware modifications.

This indicating light is suited for low-voltage control circuits in industrial and commercial electrical installations. It performs reliably in panel boards, machine control stations, and operator interface assemblies where a 12-volt AC or DC power source is present. The incandescent lamp type produces a straightforward, high-visibility indication for operators monitoring equipment status at a glance. It ships as a single unit and is positioned as a direct replacement or supplemental component for existing indicating light assemblies.

Key Features

• Dual-rated for 12 VAC and 12 VDC operation, supporting both AC and DC control circuits
• Incandescent lamp type delivers clear, visible status indication
• RoHS compliant construction meets current hazardous substance regulations
• Compact footprint: 3.6 inches long, 2.2 inches wide, 1.8 inches tall
• Lightweight at 0.14 pounds for easy panel integration

Compatibility

Designed as an OEM-style replacement or supplemental indicating light for 12-volt AC and DC industrial control panel assemblies requiring a standard incandescent pilot light.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize the control panel and verify the circuit is de-energized with a meter before handling or replacing the indicating light. Ensure the panel supply voltage matches the 12 VAC or 12 VDC rating of this unit before energizing. Do not install in circuits exceeding the rated voltage.
