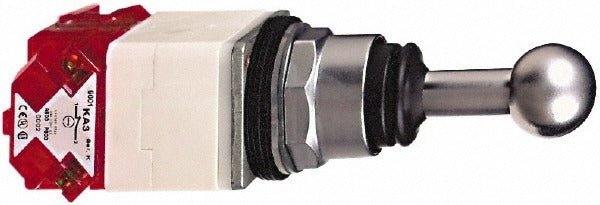

Schneider Electric 9001K73H7 Joystick Operator Switch

Product Description

The SCHNEIDER ELECTRIC 9001K73H7 is a 3-position, maintained-contact joystick operator switch rated for 10 amps at 600 VAC. It features a knob-style handle and mounts to a standard 30mm panel cutout. This switch is designed for industrial control panel applications where a durable, multi-position operator is required to direct machine or equipment functions. Electricians and industrial control technicians install this type of device as part of motor control, conveyor, or process equipment circuits. The maintained-action design holds each selected position until the operator physically moves the handle to the next position.

The 9001K73H7 is suited for use in industrial and commercial control panels requiring a panel-mount joystick operator. Its 3-position maintained configuration makes it appropriate for applications such as directional motor control, valve actuation, or similar multi-state switching tasks. The 30mm mounting hole diameter is a common industrial standard, making this switch compatible with a wide range of enclosure and panel configurations. It is typically installed in environments where reliable operator input and positive position feedback are required.

Key Features

• 3-position maintained (MA) joystick action holds selected position without spring return
• Knob-style handle for positive grip and precise position selection
• Rated 10 amps at 600 VAC for industrial control circuit use
• 30mm panel mount hole diameter matches standard industrial panel cutouts
• Compact form factor suitable for space-constrained control enclosures

Compatibility

Designed as an OEM-style replacement or new-installation joystick operator for 30mm industrial control panel assemblies. No specific compatible model numbers were provided in the product data.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements and applicable local codes. De-energize and lock out the control panel before installing or replacing this operator switch. A standard 30mm punch or pre-drilled panel cutout is required for mounting. Verify contact block configuration and circuit requirements before final wiring.
