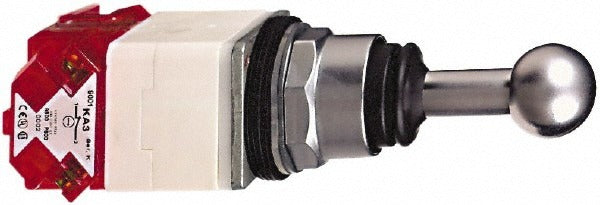

Schneider Electric 9001K31 Joystick Controller Switch

Product Description

The SCHNEIDER ELECTRIC 9001K31 is a momentary joystick controller switch designed for industrial control panel applications. It operates in 3 positions and features an octagonal handle that provides a firm, positive grip during operation. The switch fits a standard 30mm mount hole diameter and has an overall handle length of 80mm. Rated for a temperature range of -13 to 158 degrees F, this switch is built to perform in demanding environments. Electricians and control panel technicians install this type of switch for directional control of motors, actuators, and other electrically actuated equipment. The IP66 ingress protection rating makes it suitable for locations exposed to dust and water jets.

This joystick controller switch is suited for use in industrial and commercial control panels where momentary directional input is required. Typical applications include overhead crane controls, conveyor systems, and other multi-directional machine control setups. The momentary (MO) action means the switch returns to center when released, making it appropriate for applications that require operator presence to maintain movement. The 30mm mount hole diameter follows a widely used industry standard, making this switch a practical fit for many existing enclosures and control stations.

Key Features

• 3-position momentary action returns to center on release
• Octagonal handle shape provides positive grip and directional orientation
• IP66 rated for protection against dust and high-pressure water jets
• 80mm handle length for comfortable operator reach
• 30mm mount hole diameter fits standard industrial panel cutouts
• Operating temperature range of -13 to 158 degrees F for broad environmental compatibility

Compatibility

Designed as an OEM-style replacement or new-install joystick controller switch for standard 30mm industrial control panel stations and enclosures.

Installation Notes

Installation is typically performed by a licensed electrician or qualified control panel technician. De-energize the control panel and verify the absence of voltage before removing or installing any switch. Ensure the panel cutout conforms to the 30mm mount hole diameter specification before mounting. Wiring should comply with applicable NEC requirements and the equipment manufacturer's wiring diagram.
