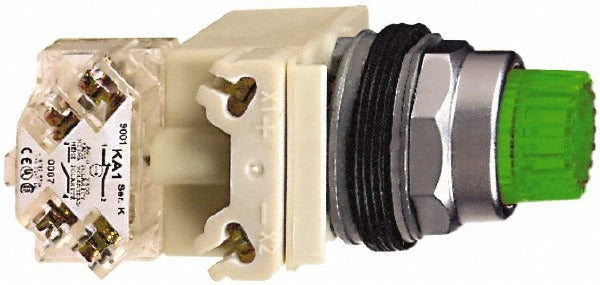

Schneider Electric 9001K2L35GH13 Push-button Switch

Product Description

The SCHNEIDER ELECTRIC 9001K2L35GH13 is a 30 mm momentary push-button switch rated for 600 volts AC and 10 amps. It features an illuminated green extended (straight) operator with an incandescent lamp, making it suitable for industrial control panels and machine operator interfaces where visual status indication is required. The switch provides both normally closed (NC) and normally open (NO) contact configurations in a single unit. Licensed electricians and industrial control technicians are the primary installers of this type of device.

This switch is designed for use in industrial and commercial control panel applications. The 30 mm mounting hole diameter fits standard 30 mm cutout enclosures and operator interface panels commonly found in manufacturing, process control, and equipment automation environments. Its NEMA ratings cover a wide range of enclosure types including Types 1, 2, 3, 3R, 4, 12, and 13, making it viable for general indoor use, outdoor weather-resistant installations, and oil-tight or dust-tight applications. The momentary action returns the operator to its default state upon release, which is standard for start, stop, and jog functions in motor control circuits.

Key Features

• 30 mm mounting hole diameter fits standard industrial operator interface cutouts
• Momentary (MO) action with NC/NO contact configuration in a single unit
• Illuminated green extended (straight) operator with incandescent lamp for visual indication
• 600 volt AC rating suitable for industrial control circuits
• NEMA ratings 1, 2, 3, 3R, 4, 12, and 13 for broad enclosure compatibility
• Meets multiple international standards including UL 508, CSA C22.2 No. 14, and EN/IEC 60947-5-1

Compatibility

Designed as an OEM-style replacement or direct-fit component for 30 mm industrial push-button operator stations and control panel assemblies requiring a momentary illuminated green switch with NC/NO contacts.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the control panel before installation or wiring. Verify that the mounting hole diameter is 30 mm before securing the operator. Confirm lamp voltage compatibility with the control circuit before completing wiring connections.
