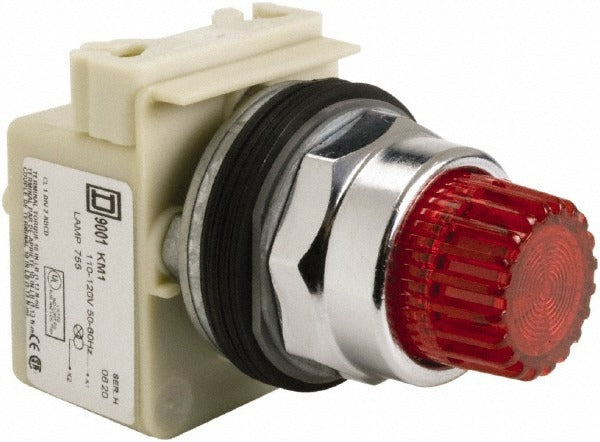

Schneider Electric 9001K2L1R Push-button Switch 600V

Product Description

The SCHNEIDER ELECTRIC 9001K2L1R is a momentary push-button switch rated for 600 volts and designed for industrial and commercial control panel applications. It features a 1.18-inch (30 mm) mounting hole diameter, an illuminated red round operator with an extended (straight) profile, and momentary (MO) action. The enclosure is rated dusttight, oiltight, and watertight, making it appropriate for demanding environments where moisture and particulate exposure are concerns. Licensed electricians and control panel integrators are the primary installers of this switch type.

This switch is suited for use in industrial control panels, machine tool stations, and process control enclosures across both commercial and light industrial settings. Its NEMA 1, 2, 3, 3R, 4, 6, 12, and 13 ratings cover a wide range of indoor and outdoor installation environments. The red illuminated extended operator provides clear visual feedback and quick operator identification on crowded panel faces. Package quantity is one unit.

Key Features

• Momentary (MO) operation with extended round red push button
• 600-volt rating suitable for industrial control circuits
• Illuminated operator for visual status indication at the panel
• 1.18-inch (30 mm) mounting hole diameter for standard 30 mm cutouts
• Dusttight, oiltight, and watertight construction for harsh environments
• NEMA ratings 1, 2, 3, 3R, 4, 6, 12, and 13 in a single unit

Compatibility

Designed as a direct-fit replacement or new-installation push-button switch for standard 30 mm panel cutouts in industrial and commercial control enclosures meeting NEMA 1, 2, 3, 3R, 4, 6, 12, or 13 requirements.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize the panel and verify absence of voltage before beginning work. Use the appropriate mounting hardware for the 30 mm cutout and confirm all wiring connections are secure before restoring power. Do not exceed the 600-volt rating of the switch.
