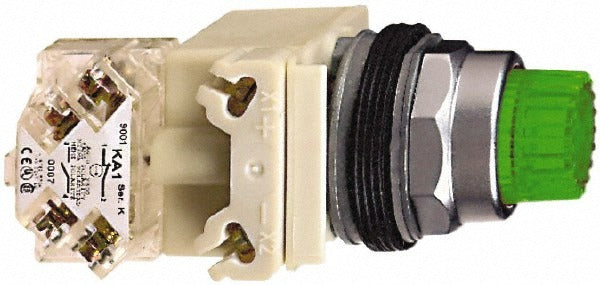

Schneider Electric 9001K2L1GH13 Push-button Switch 600V

Product Description

The SCHNEIDER ELECTRIC 9001K2L1GH13 is a 30 mm momentary push-button switch rated for 600 volts and 10 amps, designed for industrial and commercial control panel applications. It features a green, round, extended (straight) push button and provides both normally closed (NC) and normally open (NO) contact configurations via screw terminals. The switch carries NEMA ratings of 1, 2, 3, 3R, 4, 6, 12, and 13, making it suitable for environments that require dusttight, oiltight, and watertight protection. Licensed electricians and industrial maintenance technicians are the typical installers of this component.

This push-button switch is used in control panel assemblies, machine tool stations, and industrial equipment requiring a momentary operator input. Its dusttight, oiltight, and watertight construction makes it appropriate for washdown areas, outdoor enclosures, and environments with airborne contaminants. The 30 mm mounting hole diameter follows a standard industrial form factor common in NEMA-rated enclosures across manufacturing, process control, and facility automation installations.

Key Features

• Momentary (MO) operation with NC/NO contact configuration
• 600-volt, 10-amp rating suitable for industrial control circuits
• 30 mm standard mounting hole diameter for common panel fitment
• Green extended round push button for clear operator identification
• Dusttight, oiltight, and watertight construction per NEMA 4, 6, 12, and 13
• Screw terminal connections for secure, reliable wiring

Compatibility

Designed as a standard 30 mm momentary push-button switch for use in NEMA-rated industrial control enclosures and panel assemblies meeting NEMA 1, 2, 3, 3R, 4, 6, 12, and 13 requirements.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the control panel before mounting or wiring the switch. Secure all conductors under the screw terminals and verify that the panel enclosure rating is not compromised after installation. Confirm that the circuit voltage and amperage do not exceed the rated 600 volts and 10 amps.
