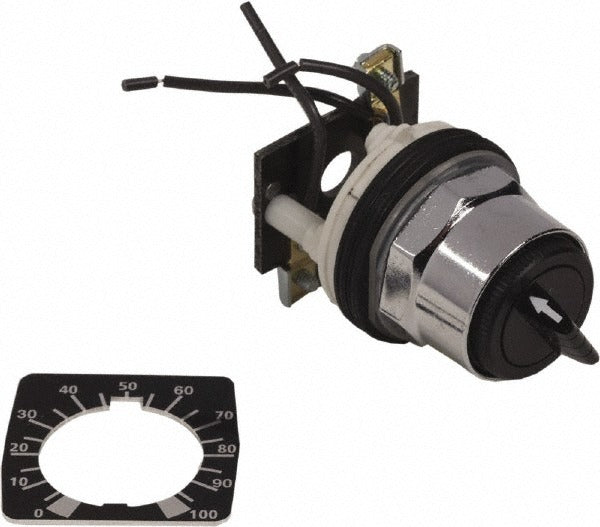

Schneider Electric 9001K20 Selector Switch Operator 30mm

Product Description

The SCHNEIDER ELECTRIC 9001K20 is a 30mm selector switch operator designed for use in industrial and commercial control panel applications. This operator serves as the external actuating component of a selector switch assembly, providing the mechanical interface that a technician rotates to switch between circuit states. The 9001K20 fits a standard 30mm mounting hole and measures 4.5 inches in length, 2.3 inches in width, and 2 inches in height. Weighing 0.23 pounds, it is a compact, direct-replacement operator suited for panel builders, electricians, and maintenance technicians working on machine control and process equipment.

Selector switch operators in this class are commonly installed in motor control centers, machine control panels, and industrial enclosures where a durable, reliable actuator is required to toggle between two or more circuit positions. The 9001K20 is appropriate for both new panel builds and field replacement of worn or damaged operators. Installation is typically performed by licensed electricians or qualified industrial maintenance personnel following applicable NEC guidelines for control circuit wiring and panel work.

Key Features

• 30mm mounting hole diameter for standard panel cutout compatibility
• Compact form factor: 4.5 inches x 2.3 inches x 2 inches
• Lightweight at 0.23 pounds for easy handling during panel assembly
• Functions as the operator (actuator) component of a selector switch assembly
• Single-piece package quantity suitable for individual replacement or small builds

Compatibility

Designed as an OEM-style replacement operator for 30mm selector switch assemblies requiring a standard mounting hole diameter actuator component.

Installation Notes

De-energize and lock out the control panel before removing or installing any switch operator per NFPA 70E lockout/tagout requirements. The operator mounts through a 30mm panel cutout and typically secures with a retaining nut or snap-fit collar depending on the base unit. Do not force the operator into mismatched mounting hole sizes, as this can damage the panel face or the switch body. Installation should be performed by a qualified electrician familiar with industrial control panel wiring practices.
