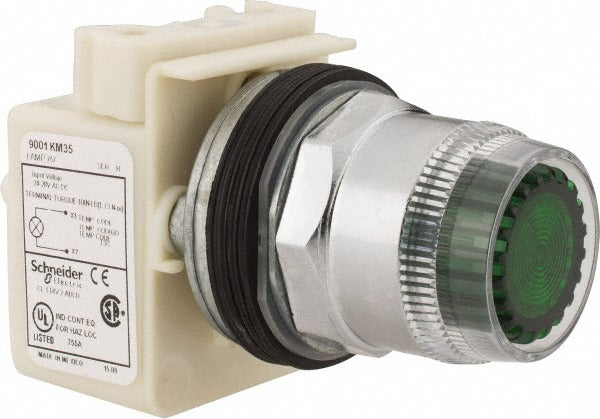

Schneider Electric 9001K1L35G Push-button Switch 600V

Product Description

The SCHNEIDER ELECTRIC 9001K1L35G is an illuminated momentary push-button switch rated for 600 volts, designed for industrial control panel applications. It features a 30 mm (1.18 inch) mounting hole diameter and a green, round, extended (straight) operator. The momentary action means the switch returns to its default state when released. Built to NEMA 4, 4X-equivalent protection ratings, this switch is dusttight, oiltight, and watertight, making it suitable for demanding environments. Licensed electricians and control panel integrators typically install this device in machine control, process equipment, and industrial automation systems.

This push-button switch is used in industrial and commercial control panels where a momentary, illuminated operator is required. The green color convention typically signals start or run functions in machine control wiring. Its watertight and oiltight construction makes it appropriate for wash-down environments, manufacturing floors, and outdoor enclosures where exposure to contaminants is expected. NEMA ratings 1, 2, 3, 3R, 4, 6, 12, and 13 cover a broad range of indoor and outdoor installation scenarios.

Key Features

• 600-volt rating supports standard industrial control circuit voltages
• Illuminated operator provides visual status indication at the panel face
• Momentary operation returns to default position upon release
• 30 mm mounting hole diameter fits standard 30 mm cutout panel openings
• Dusttight, oiltight, and watertight construction for harsh environments
• NEMA ratings 1, 2, 3, 3R, 4, 6, 12, and 13 for broad enclosure compatibility
• Green round extended operator follows industry start-function color convention

Compatibility

Designed as an OEM-style replacement or new-installation push-button switch for industrial control panels with standard 30 mm panel cutouts conforming to NEMA 30 mm operator mounting requirements.

Installation Notes

Installation should be performed by a licensed electrician following NEC guidelines and applicable local codes. De-energize and lock out the control panel before mounting or wiring this switch. The 30 mm panel cutout must be clean and properly sized to achieve the rated dusttight and watertight seal. Do not exceed the rated 600-volt circuit voltage for this operator.
