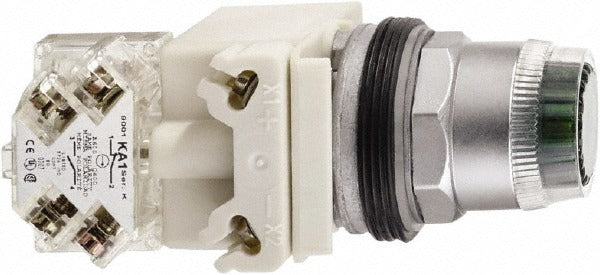

Schneider Electric 9001K1L1GH13 Push-button Switch 600V

Product Description

The SCHNEIDER ELECTRIC 9001K1L1GH13 is a momentary push-button switch designed for industrial and commercial control panel applications. It features a 30 mm mounting hole diameter and is rated for 600 volts and 10 amps. The switch provides both normally closed (NC) and normally open (NO) contact configurations via screw terminal connections. Its extended, straight-profile green button with a round shape makes it suitable for start or jog functions in machine control circuits. Licensed electricians and industrial maintenance technicians are the typical installers for this type of device.

This push-button switch is suited for use in industrial control panels, machine tool enclosures, and automation systems where a momentary actuation signal is required. The robust enclosure protection ratings make it appropriate for environments exposed to dust, oil, or water ingress. It is rated for both AC-15 and DC-13 utilization categories, covering inductive AC loads and DC control circuits common in industrial installations.

Key Features

• Momentary (MO) operation with NC/NO contact configuration
• 600-volt, 10-amp rating for industrial control circuits
• 30 mm mounting hole diameter for standard panel cutout compatibility
• Extended round green push-button for clear visual identification of start or run functions
• Dusttight, oiltight, and watertight construction for demanding environments
• Screw terminal connections for secure, tool-based field wiring

Compatibility

Designed as an OEM-style replacement or new-installation push-button switch for industrial and commercial control panels requiring a standard 30 mm momentary switch with NC/NO contacts rated at 600 volts.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize and lock out the control panel before beginning any wiring or mounting work. Screw terminals must be torqued to the panel or device manufacturer specifications using an appropriate screwdriver. Verify that the enclosure NEMA rating matches the environment before completing installation.
