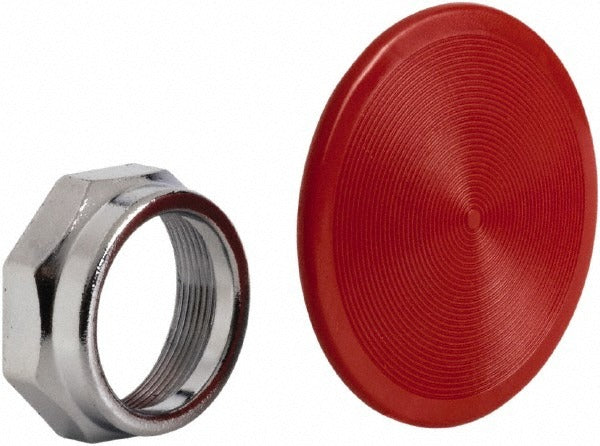

Schneider Electric 9001K17R Mushroom Head Pushbutton Switch

Product Description

The SCHNEIDER ELECTRIC 9001K17R is a red, nonilluminated extended mushroom head pushbutton switch accessory designed as a snap-in operator knob for 30 mm industrial control stations. The round polycarbonate knob measures approximately 2.3 inches in height, 2.8 inches in length, and 2 inches in width, providing a large, easy-to-actuate surface suited for emergency-stop or critical control functions. Weighing 0.11 pounds, this replacement operator is built for panel-mount applications where a highly visible, extended-reach actuator is required. Electricians and control panel technicians install this component as a field replacement or new build-out part in industrial and commercial control enclosures.

The 9001K17R is intended for use in industrial control panels, machinery, and process equipment where 30 mm pushbutton stations are standard. The extended mushroom head profile makes it appropriate for applications requiring rapid manual actuation or emergency-stop duty. It is compatible with Harmony 9001K, 9001SK, and 9001KX series 30 mm pushbutton assemblies. This snap-in design allows straightforward operator replacement without special tooling, making it practical for maintenance and service calls in manufacturing, utility, and commercial facility environments.

Key Features

• Extended mushroom head profile for high-visibility, easy manual actuation
• Red color for clear visual identification at control stations
• Nonilluminated operator, compatible with KR5 and SKR5 operators
• Polycarbonate construction for durability in industrial environments
• Snap-in mounting for tool-free installation on 30 mm pushbutton bodies
• Compact package weight of 0.11 pounds for easy field stocking

Compatibility

Designed for use with Harmony 9001K, 9001SK, and 9001KX series 30 mm pushbuttons, as well as KR5 and SKR5 operators.

Installation Notes

Installation is performed by licensed electricians or qualified control panel technicians. De-energize the control panel and lock out the power source before servicing any pushbutton operator or control station. The snap-in design seats directly onto compatible 30 mm pushbutton bodies without additional hardware. Follow applicable NEC guidelines for industrial control wiring and panel construction when integrating this component into a new or existing control station.
