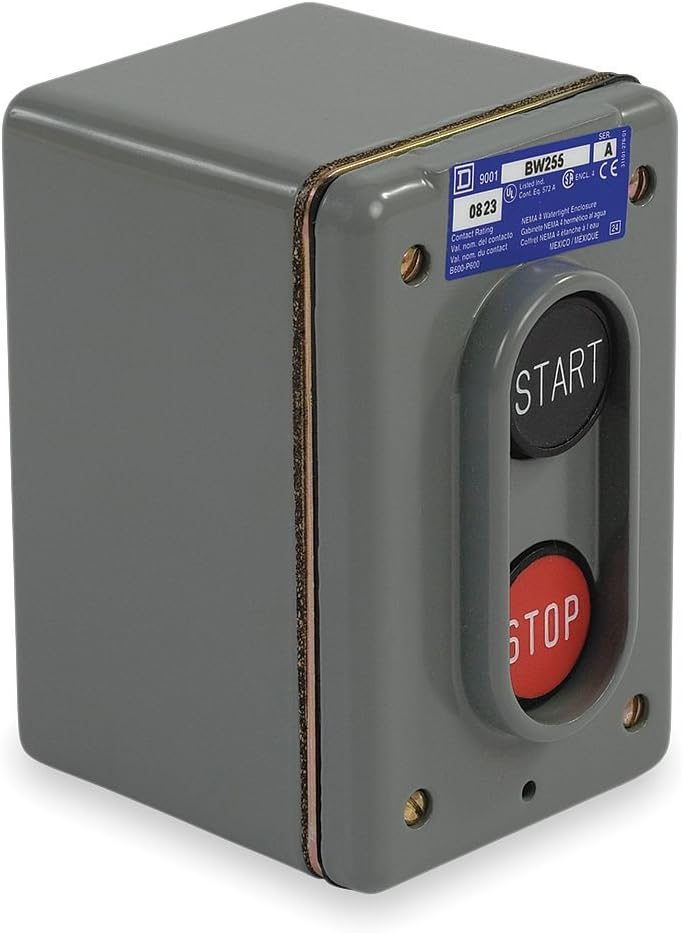

Schneider Electric 9001BW255 Control Station 600VAC 5A

Product Description

The Schneider Electric 9001BW255 Control Station is engineered for superior durability and efficient control of industrial machinery. Designed for both indoor and outdoor environments, this control station ensures robust resistance against impact, dust, water, and vibrations.

• Robust surface mount design suitable for harsh conditions.
• Incorporates two push buttons with interlocked NO contacts for precise operation.
• Features a secure screw-clamp terminal connection.

Product Highlights

Equipped with a NEMA 4 rating, the Schneider Electric 9001BW255 Control Station offers reliability in diverse operating conditions. It proposes a structured interaction with machinery through its ergonomic two-button layout, enhancing operational efficiency and safety.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: 9001BW255
• Certification: UL, CE, CSA

Technical Specifications

• Electrical Rating: 600 VAC, 5 Amp
• Enclosure: NEMA 4 rated
• Mounting Type: Surface Mount
• Environmental Suitability: Indoor/Outdoor
• Material: Zinc Die Cast
• Dimensions: Width: 2.76 inches, Depth: 4.25 inches, Height: 3.6 inches
