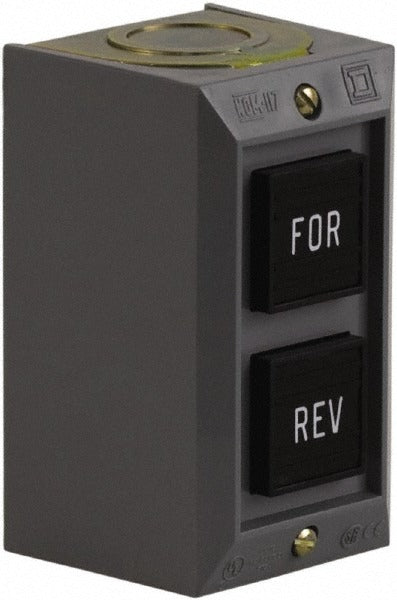

Schneider Electric 9001BG206 Push-button Control Station

Product Description

The SCHNEIDER ELECTRIC 9001BG206 is a surface-mount, momentary push-button control station rated for forward and reverse operation. It houses two projecting push-button operators with a 2NO contact configuration, making it a standard choice for controlling motor direction in industrial and commercial applications. The station carries a NEMA 1 enclosure rating and is rated for up to 600 volts and 5 amps. Licensed electricians and industrial maintenance technicians install this type of control station as part of motor control circuits, typically wired to a contactor or motor starter assembly.

This control station is suited for surface-mount installation in dry indoor environments where a dedicated forward and reverse control point is required. Typical applications include conveyor systems, hoists, material handling equipment, and other motor-driven machinery that requires directional control from a fixed operator station. The two legend-marked push buttons — Forward and Reverse — allow clear identification at the panel face. Its compact footprint and standard surface-mount design make it compatible with many existing industrial control enclosure setups.

Key Features

• Momentary switch action with 2NO contact configuration for forward and reverse motor control
• Two projecting push-button operators with Forward and Reverse legend markings
• NEMA 1 enclosure rating for dry indoor installations
• Rated 600 volts and 5 amps for compatibility with standard motor control circuits
• Surface-mount design for straightforward panel or wall installation
• Meets CE, CSA LR25490 Class 3211 03, and UL Listed standards

Compatibility

Designed as an OEM-style replacement or direct-install control station for surface-mounted motor control applications requiring a momentary 2NO forward and reverse push-button operator in a NEMA 1 enclosure.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize all circuits and lock out and tag out the associated motor control equipment before wiring or mounting the control station. Verify that supply voltage and amperage do not exceed the station ratings of 600 volts and 5 amps. Ensure the mounting surface is clean, dry, and structurally adequate for secure attachment.
