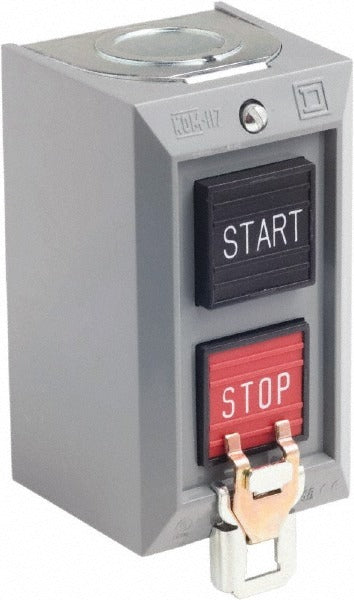

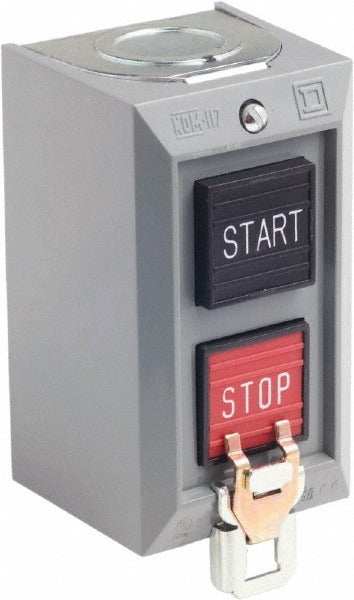

Schneider Electric 9001BG204 Push-button Control Station

Product Description

The SCHNEIDER ELECTRIC 9001BG204 is a two-operator momentary push-button control station designed for industrial and commercial electrical control applications. It features one normally open (NO) and one normally closed (NC) contact configuration with Start and Stop legend markings, making it suitable for standard motor control and machine control circuits. Rated at 600 volts and 5 amps, the station uses projecting push-button operators and is surface-mounted. It is installed by licensed electricians working on motor starters, control panels, and automation equipment.

The 9001BG204 is intended for surface-mount installations in light-duty industrial and commercial control applications. With a NEMA 1 enclosure rating, it is suited for indoor, dry environments where basic protection against contact with enclosed equipment is required. Typical uses include machine start/stop circuits, conveyor controls, and pump panel stations where a compact, two-button momentary station is needed.

Key Features

• Two projecting push-button operators with Start and Stop legend markings
• Momentary switch action with NO/NC contact configuration
• Rated 600 volts and 5 amps for reliable control circuit performance
• NEMA 1 rating for indoor, dry-location installations
• Surface-mount design for straightforward panel or enclosure installation
• Meets CE, CSA LR25490 Class 3211 03, and UL Listed standards

Compatibility

Designed as an OEM-style replacement or new-installation control station for indoor industrial and commercial motor control and machine control circuits requiring a two-operator momentary push-button station.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the control circuit before wiring or servicing the station. Verify that the supply voltage and amperage do not exceed the rated 600 volts and 5 amps. NEMA 1 enclosures are not rated for wet, washdown, or outdoor environments; select an appropriate enclosure if moisture or contamination is present.
