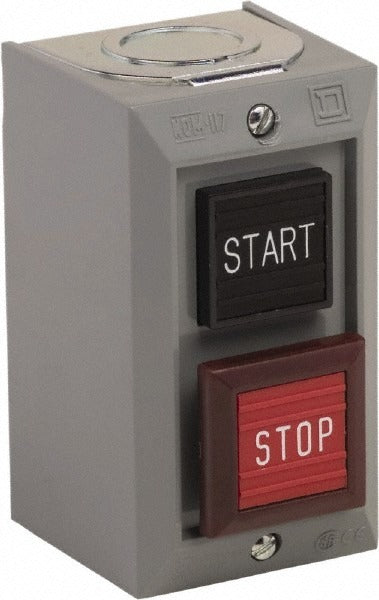

Schneider Electric 9001BG203 Push-button Control Station

Product Description

The SCHNEIDER ELECTRIC 9001BG203 is a two-operator, surface-mount push-button control station designed for industrial and commercial electrical control applications. It features momentary-action projecting push buttons with a NO/NC contact configuration, labeled Start and Stop. Rated for up to 600 volts and 5 amps, this station handles standard control-circuit duties. It carries a NEMA 1 enclosure rating, making it suitable for general indoor use where protection from dust and light contact is required. Licensed electricians and controls technicians are the primary installers for this type of station.

This control station is used in motor control, conveyor, pump, and general machinery start/stop applications in light industrial and commercial settings. The projecting push button style provides tactile clarity for operators working in panel or machine enclosures. The NEMA 1 rating limits installation to dry indoor environments. The two-button Start/Stop layout follows a standard control-circuit wiring topology common in motor starter and contactor panels.

Key Features

• Two projecting push button operators with Start and Stop legend markings
• Momentary switch action with NO/NC contact configuration for standard control-circuit wiring
• Rated 600 volts and 5 amps for general control-circuit duty
• NEMA 1 enclosure rating for dry indoor installations
• Surface mount design for straightforward panel or enclosure installation
• Certified to CE, CSA LR25490 Class 3211 03, and UL Listed standards

Compatibility

Designed as an OEM-style replacement or direct-install push-button control station for indoor industrial and commercial motor control applications requiring a two-operator, momentary NO/NC Start/Stop station with a NEMA 1 enclosure rating.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize and lock out the circuit before wiring or mounting the control station. Verify that the supply voltage and amperage of the control circuit do not exceed 600 volts and 5 amps respectively. The NEMA 1 rating restricts use to dry indoor locations only; do not install in wet, corrosive, or outdoor environments.
