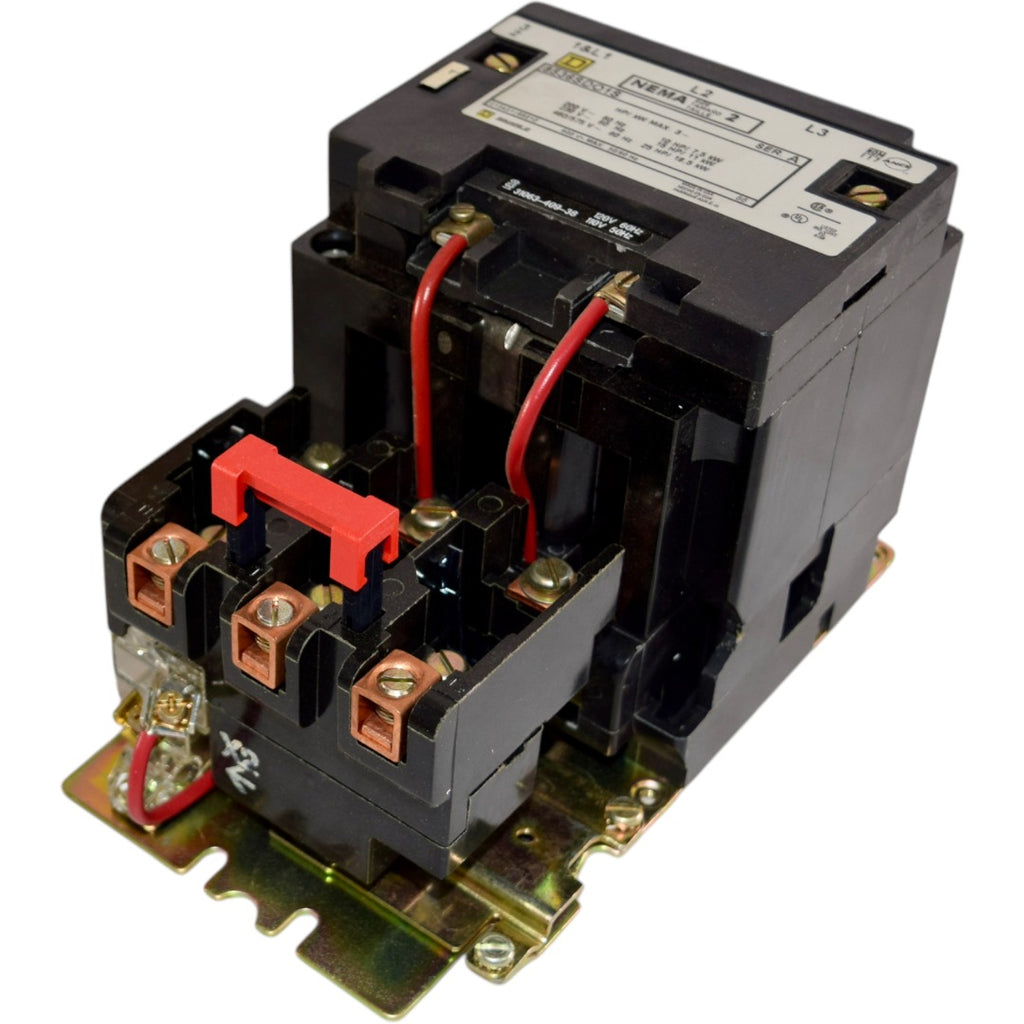

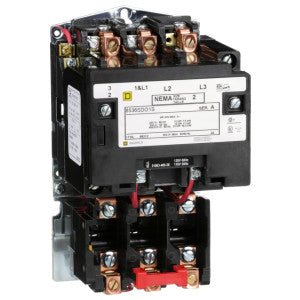

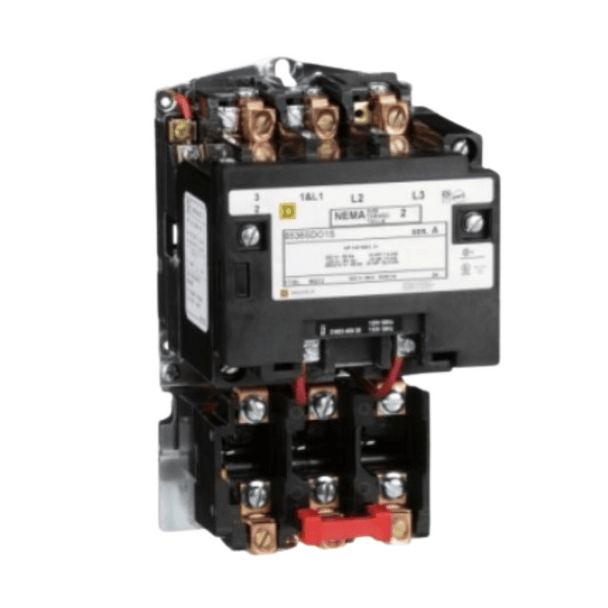

Schneider Electric 8536SD01V02S NEMA Size 2 Magnetic Starter

Product Description

The Schneider Electric 8536SD01V02S is a NEMA Size 2 magnetic starter designed for AC squirrel cage motors, supporting full voltage starting and stopping. This 3-pole starter has a current rating of forty-five amps and operates in systems with voltages up to six hundred volts. It features a melting alloy thermal overload relay and a coil operating at one hundred ten to one hundred twenty volts AC, based on fifty to sixty hertz. The unit is open-type, meant for applications without an enclosure.

• NEMA Size 2, three-pole configuration
• Equipped with a melting alloy thermal overload relay
• Designed for AC squirrel cage motors

Product Highlights

This magnetic starter is ideal for various industrial applications requiring reliable motor control.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: 8536SD01V02S

Technical Specifications

• NEMA Size: 2
• Rated Current: 45A
• Coil Voltage: 110/120V AC
• Coil Frequency: 50-60 Hertz
• Maximum Voltage: 600 Volts
• Overload Relay Type: Melting alloy thermal
• Dimensions: 7.81 inches tall, 4.31 inches wide, 4.94 inches deep
