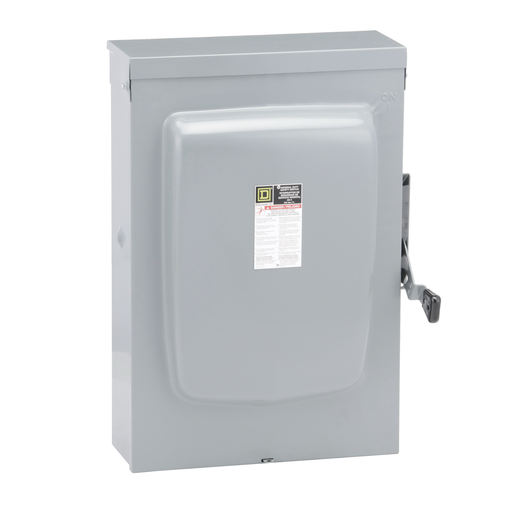

Schneider D325NR Safety Switch Fusible 400A 3PH 240V

Product Description

The SCHNEIDER D325NR is a safety switch designed for residential and commercial applications where durability and economy are prime considerations. This single-throw, 3-pole switch is rated for 240V AC and 400A. It is suitable for use as service equipment and is UL Listed, meeting NEMA Standard KS1.

• Rated current of 400A with a NEMA 3R degree of protection.
• Fusible disconnect switch comes with a neutral (factory installed).
• 3-pole, 240VAC has a short circuit rating of 100kA and is surface mounted.

Product Highlights

This general duty safety switch is designed for lighting, air conditioning, and appliance applications. It features a NEMA 3R enclosure for indoor/outdoor use and accepts AWG 10-6 aluminum/copper lugs.

Product Information

Standard Information

• Brand: SCHNEIDER
• Manufacturer Part Number: D325NR
• Country of Origin: USA

Technical Specifications

• MPN: D325NR
• Brand: SCHNEIDER
• Action: SINGLE THROW
• Amperage: 400 Amp
• Applications: GENERAL DUTY
• Conductor Size: 10-6 AWG
• Current: 400 Amp
• Disconnect Type: Fusible disconnect switch
• Duty Rating: General duty
• Enclosure: 3R
• Enclosure Material: Steel
• Enclosure Rating: 3R
• Fuse Type: H,J,K,R
• Line Rated Current: 400 A
• Material: Steel
• Mounting Type: Surface
• NEMA Size: 3R
• Number of Phases: 3 Phase
• Number of Poles: 3 Pole
• Short Circuit Current: 100 kA
• Tc Connection: AWG 10...AWG 6 ALUMINIUM/COPPER,LUGS
• Type: SINGLE THROW SAFETY SWITCH,FUSIBLE DISCONNECT SWITCH
• Voltage: 240 Volt
• Wire Size: AWG 10...AWG 6 aluminium/copper
• Sub Brand: GENERAL DUTY
• Environmental Conditions: RAINPROOF AND SLEET/ICE PROOF (INDOOR/OUTDOOR)
• Product UPC: 78590146157
• Depth: 10.13 Inch
• Height: 30.63 Inch
• Width: 22.25 in
• Certifications: UL Listed File E2875
• Product Line: Square D
• Part Number: D325NR
• Product: Safety Switch
• Number of Throws: Single Throw Safety Switch
• Short-Circuit Current: 100 kA maximum
• Electrical Connection: Lugs
• Maximum Voltage Rating: 240VAC
• Enclosure Type: Rainproof and Sleet/Ice proof (Indoor/Outdoor)
• Actuator Type: Handle
• Amperage Rating: 400 A
• Contact Form: TPST
• Finish: Hot Dipped Galvanized
• Frequency Rating: 50/60 Hz
• Horsepower: 125 hp
• Number of Wires: 3
• Series: E1 Series
• Terminal Type: Lug
